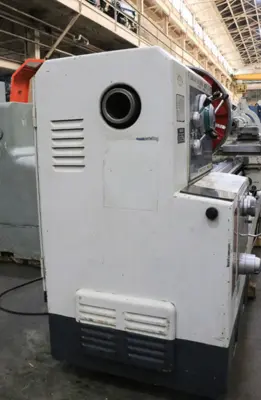

1970'S MAZAK 30" X 200"
Have one to sell?
ConditionUsed
1 available
Used engine lathe, featuring 30" swing, 200" centers, D1-11" camlock, and spindle speeds 12-1200 RPM. Equipped with inch/metric threading, taper turning attachment, 24" 4-jaw chuck, coolant system, and more. Approx. weight: 14,500 lbs.
SWING OVER BED WAYS ................. 30"
SWING OVER CROSS SLIDE .............. 20-3/4"
DISTANCE BETWEEN CENTERS ............ 200"
HOLE THRU SPINDLE ................... 4-1/16"
SPINDLE NOSE ........................ D1-11" CAMLOCK
WIDTH OF BED ........................ 22"
SPINDLE SPEED RANGE (16) ............ 12 - 1200 RPM
LONGITUDINAL FEED RANGE ............. .0024" - .0337" IPR
CROSS FEED RANGE HALF OF LONGITUDINAL SETTING
INCH THREADING RANGE (40) ........... 2 - 28 TPI
METRIC THREADING RANGE (23) ......... 1 - 14mm
TAILSTOCK SPINDLE TRAVEL ............ 11-3/4"
TAILSTOCK SPINDLE TAPER ............. #6MT
APPROXIMATE FLOOR SPACE ............. 288"L x 64"W x 62"H
APPROXIMATE WEIGHT .................. 14,500 LBS

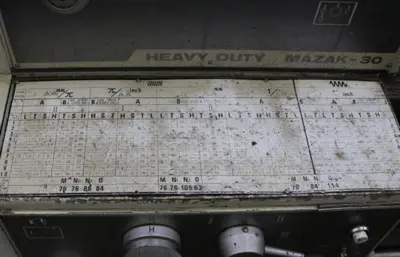

INCH & METRIC THREADING
TAPER TURNING ATTACHMENT
24" 4-JAW CHUCK
17" CAPACITY ROLLER TYPE STEADY RESTS
9" CAPACITY ROLLER TYPE STEADY REST
TWO SPEED TAILSTOCK
THREAD DIAL INDICATOR
POWER RAPID TRAVERSE
COOLANT SYSTEM W/REMOVEABLE CHIP PANS
HARDENED & GROUND BED WAYS
15 HORSE POWER MAIN MOTOR
