2024 DOOSAN SVM 5100L
Have one to sell?
ConditionUsed
1 available
Vertical Machining Center, used. Features 50" x 20" x 20" travels, 12,000 RPM, 25 hp, CAT 40 taper, 30-position ATC. CNC control, spindle chiller, and ready for Renishaw probe. Never used for part cutting.

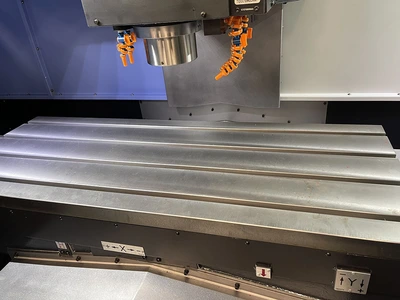

TABLE SIZE .................... 20" x 52"
TABLE CAPACITY ................ 1,764 lbs / 800 kg
X-AXIS TRAVEL ................. 50" / 1270mm
Y-AXIS TRAVEL ................. 20" / 510mm
Z-AXIS TRAVEL ................. 20" / 510mm
SPINDLE SPEED ................. 12,000 RPM
SPINDLE MOTOR ................. 25 hp
SPINDLE TAPER ................. CAT 40
TOOL CAPACITY (ATC) ........... 30
RAPID TRAVERSE RATE ........... 1,417 in/min.
APPROX MACHINE WEIGHT ......... 12,850 lbs
APPROX MACHINE DIMENSIONS ..... 87"L x 122"W x 106"H
DOOSAN-FANUC i SERIES PLUS CNC CONTROL
REMOTE JOG HANDLE

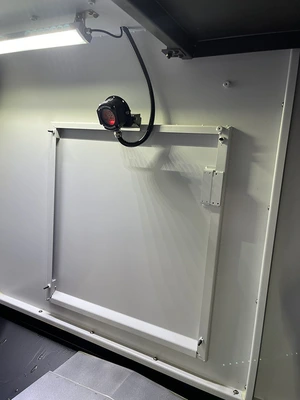

RENISHAW PROBE READY (EYE AND WIRING PRESENT,
PURCHASE OF PROBE TOOL REQUIRED
300 PSI THROUGH SPINDLE COOLANT
SPINDLE CHILLER
30 POSITION SIDE MOUNT TOOL CHANGER
CAT 40 TAPER
MACHINE HAS NEVER CUT A PART
