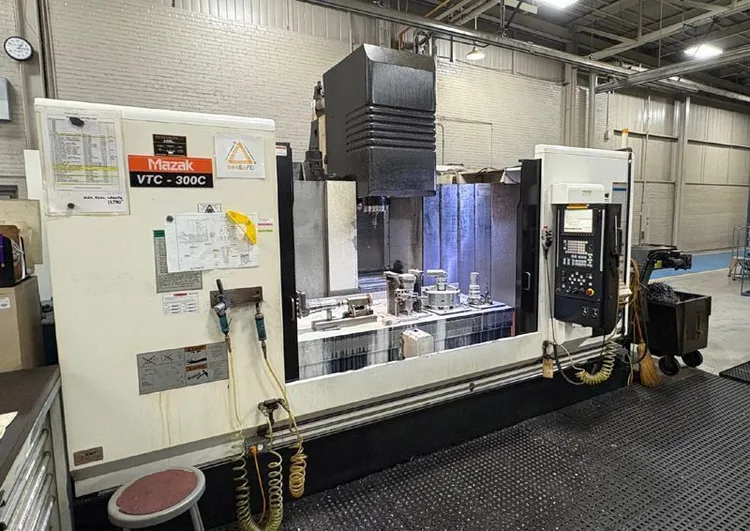

2011 MAZAK VTC-300C W/4th Axis
Have one to sell?
ConditionUsed
1 available
2011 MAZAK VTC-300C used vertical machining center with 65.35" X, 30" Y, 26" Z travel, 25 HP spindle, 12,000 RPM, and a 48-tool magazine. Features Mazatrol CNC, auto tool measurement, rotary table.
Table Size................................ 78.74" x 30"
Table Load Capacity....................... 3,300 Lbs (Load Uniformly Distributed)
X-Axis Travel............................. 65.35"
Y-Axis Travel............................. 30"
Z-Axis Travel............................. 26"
Distance From Spindle-to-Table Top..... 7.09" min/33.07" max
Distance from Spindle C/L to Column....... 33.86"
Table Height.............................. 34.45"
Spindle Nose.............................. #40
Spindle Speed............................. 12,000 RPM
Spindle Acceleration Time (0-12,000 RPM).. 1.8 Sec.
Number of Spindle Ranges.................. 2 (Delta-Star)
Spindle Horsepower (5 min/30min).......... 25/15 HP
Obtain Full HP @ (30 min)................. 3300 RPM
X,Y,Z Axis Rapid Traverse................. 1181 IPM
Servo Magazine Capacity................... 48 Tools
Chip-to-Chip Tool Changer Time (Approx)... 4.7 Sec.
Tool - to - Tool Tool Changer Time....... 1.5 Sec.
Max. Tool Dia. w/All Pockets Full........ 3.14" (2.75"w/48T)
Max. Tool Dia. w/Adjacent Pockets Empty... 4.33"
Max. Tool Length.......................... 13.78"
Max. Tool Weight.......................... 17.6 lbs
Mazatrol Fusion 640M CNC Control
KY Advantec CNC Option Package
10.4” Color LCD
Main Spindle 25 HP / 5 Min
Spindle Speed 12,000 RPM #40
48 Tool Servo Magazine
Hi-Press. Coolant Thru-Spindle @ 213 PSI / 7 GPM
Relocation Device
Windows 2000 Operating System for Mazak Machine Control
Full Length Inverter Chip Conveyor (Right Side Discharge)
Auto Tool Length Measurement Renishaw TS27R
Mazak (Nikken) CNC260MA NC Rotary Table
PCMCIA Interface (2-Slot)
