AMERICAN SUPER-PRODUCTIVE 48
Have one to sell?
ConditionUsed
1 available

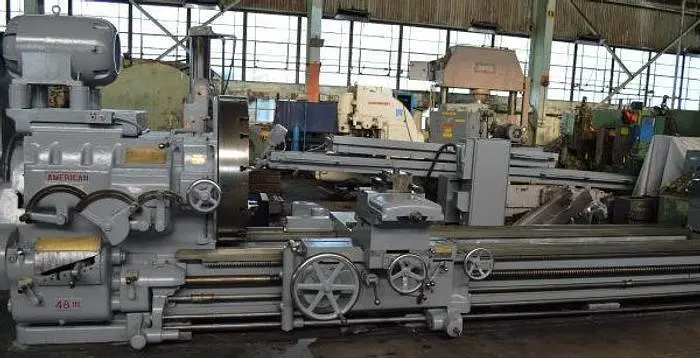

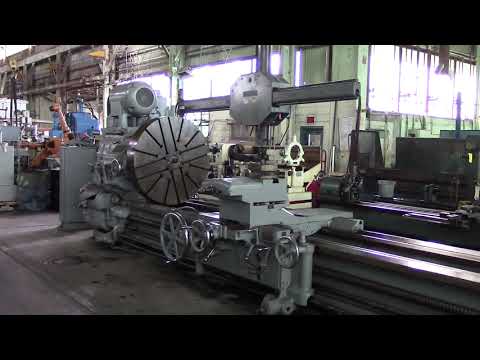

AMERICAN SUPER-PRODUCTIVE 48 Engine Lathe, 48" swing, 300" centers, 50 HP, equipped with 48" T-slotted face plate, threading dial, and power rapid traverse. Floor size: 35' x 6'. Weighs 65,000 lbs. Perfect for precision machining needs.
Swing Over Bed Ways, Rated 48"
Swing Over Bed Ways, Actual 50"
Swing Over Cross-Slide 35.5"
Distance Between Centers 300" (25')
Hole thru Spindle 2-5/8"
Tailstock Spindle Diameter 9.5"
Tailstock Spindle Travel 20"
Tailstock, Spindle Taper #6 MT
Spindle Speeds, Range .63 to 163 RPM
Carriage Longitudinal Feeds, Range .006 to .338 IPR
Threading Range .5 to 28 TPI
Main Motor, Horsepower 50 HP
Electrical System 440/3/60
Floor Space Required, L x D 35' x 6'
Weight, Approximately 65000 LBS
48" T-SLOTTED FACE PLATE
THREADING DIAL
POWER RAPID TRAVERSE
