2007 MAZAK NEXUS QUICK TURN 450-II
Have one to sell?
ConditionUsed
1 available

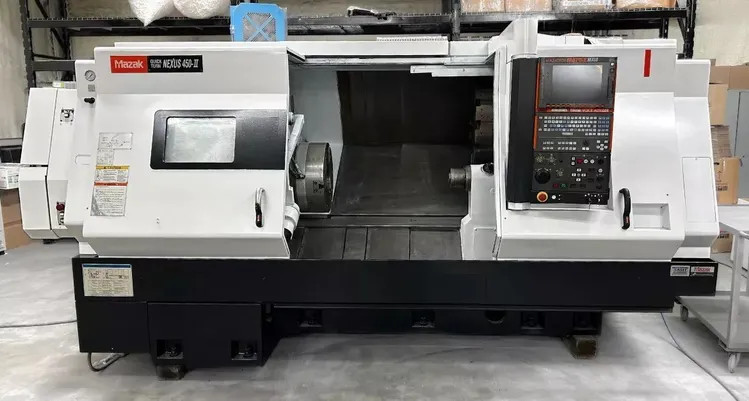

2007 MAZAK NEXUS QUICK TURN 450-II CNC Lathe, featuring a 33.27" swing and 40.3" machining length. Equipped with 2 axes and a 50 hp motor reaching up to 2,000 RPM. Includes a tailstock.
Max. Swing Diameter: 33.268''
Max. Cutting Dia.: 22.835''
Maximum Diameter Of Shaft Work: 18.25''
Maximum Distance Between Centers: 40''
Spindle Hole: 7.0"
Spindle Nose : A2-15''
Spindle Speeds: 4-2000 RPM
Type Of Turret: 12 Position Turret
Rapid Traverse Rate X & Z: 1181 IPM
X-axis Stroke/ Z-axis Stroke: 13.375''/41''
Tailstock Center: MT No. 5
Tailstock Quill Diameter: 5''
Tailstock Travel: 32.5''
Tailstock Type: Hyd. N/C programmable
Tool Size (Square Shank): 40 HP AC
MAZATROL MATRIX CNC CONVERSATIONAL CONTROL
SPIRAL
EIA 3D COMP
ROTATION
GEOMETRIC
SCALING
EXT-DATA I/O
POLAR COORDINATES INPUT
COMPARISON STOP
S54.1
VARIABLE 600 SETS
EIA HELICAL TAP CYCLE
EIA PATTERN CYCLE
PITCH ERROR COMPENSION
EIA/ISO PROGRAMMING
PROGRAMMABLE TAISTOCK
TRANSFORMER
CHIP CONVEYOR
18" AIR THRU HOLE CHUCK
PREPPED for REAR CHUCK
