2015 MAZAK QUICK TURN SMART 250
Have one to sell?
ConditionUsed
1 available

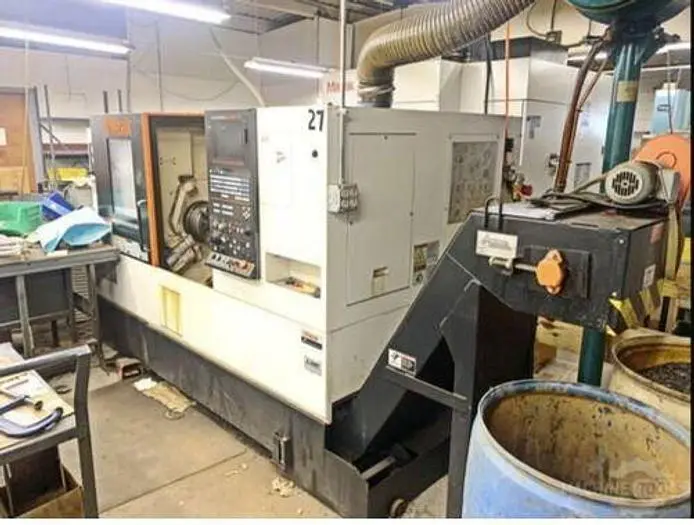

2015 MAZAK QUICK TURN SMART 250 CNC Lathe: 26" swing, 22" machining length, 10" hydraulic chuck, 35 HP, 4,000 RPM, 2-axis. Features Mazatrol Smart Control, tailstock, chip conveyor, USB/PCMCIA interface, EIA/ISO functions, and more.
Machine Control Mazatrol Smart Control
Chuck Sizes Main / Subspindle - 10" 3-Jaw Hydraulic Chuck
Maximum Swing - 26"
Maximum Cutting Diameter - 16"
Maximum Cutting Length - 19.868"
X-Axis Travel - 8.26"
Z-Axis Travel - 22"
Spindle Nose / Bore / Bar Capacity - A2-8" / 3.46" / 3.0"
Spindle Speeds - 4,000 RPM
Spindle Motor - 35 HP
Number of Turret Positions - 12 Station Turret
Rapid Traverse Rates - 1181 IPM / 1299 IPM
Tailstock Body Travel / Center 20.65" / MT #4
Tailstock Quill Travel / Quill Diameter 3.7" / 3.7"
10" 3 Jaw Hydraulic Chuck
Chip Conveyor
Automatic Tool Eye
Programmable Tailstock
USB Port Interface
PCMCIA Card Interface
EIA/ISO Input Function
EIA 3D Compensation
Rotation
Geometric
Threading
Polar Coordinates Input
G54.1
Variable 600 Sets
Pitch Error Compensation
Spiral Interpolation
Card Interface
USB Port Interface
RS 232 Port Interface
All Available Manuals
All Available Tool Holders
