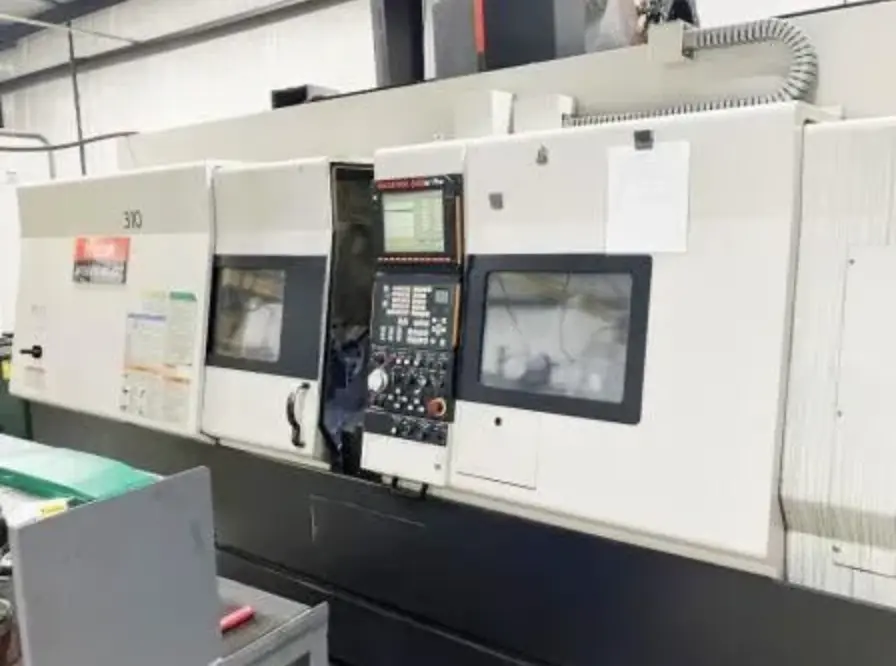

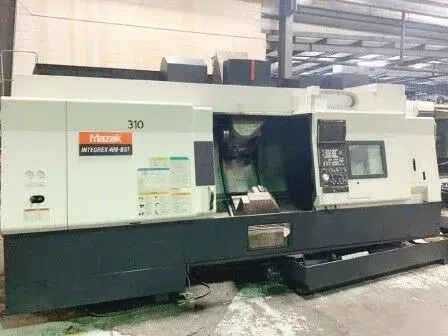

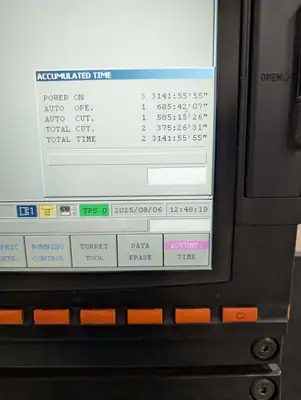

2004 MAZAK INTEGREX 400-III ST

Standard Chuck Dia. Main Spindle (L).... 12"
Standard Chuck Dia. Second Spindle (R).. 10"
Maximum Swing........................... 33.5"
Maximum Swing using Y-axis.............. 26"-33.5"
Maximum Swing over Cross Slide.......... 33.5"
Maximum Swing over Lower Turret......... 16.5"
NOTE: Without boring bar holder on turret.
Maximum Cutting Diameter: Chucking...... 30" (Upper)
Maximum Cutting Diameter: Chucking...... 16.5" (Lower)
Maximum Cutting Length.................. 60"
Maximum Distance Between Chuck Faces.... 60"

MAIN SPINDLE SPECIFICATIONS (L):
Spindle Nose............................ A2-8
Spindle Bore............................ 4.4"
Maximum Bar Work.... ................... 4.0" Dia.
Spindle Speed........................... 3,300 RPM
Spindle Index (Programmable)............ 0.0001 Deg.
Spindle Horsepower (Cont./30 Mins.)..... 35/40 HP (AC)
Spindle Torque.......................... 891.6 ft-lbs.

SECOND SPINDLE SPECIFICATIONS (R)
Spindle Nose............................ A2-8
Spindle Bore............................ 3.46"
Maximum Bar Work (Non-thru)............. 3.0" Dia.
Spindle Speed........................... 4,000 RPM
Spindle Index (Programmable)............ 0.001 Deg.
Spindle Horsepower (Cont./30 Min.)...... 30/35 HP (AC)
Spindle Torque.......................... 368.8 ft-lbs.

UPPER TURRET AND TOOLING SPECIFICATIONS:
Type of Turret.......................... 1 Position w/ATC
Tool Shank Height....................... 1"
Tool Size (Boring Bar Max. Dia.)........ 1.5"
Magazine Capacity....................... 40 Tools
Tool Selection Method................... Random
Tool to Tool ATC Time................... 1.3 Sec.
Max. Tool Dia. w/All Pockets Full....... 3.54"
Max. Tool Dia. w/Adjacent Pockets Empty. 4.92"
Max. Tool Length (From Gage-Line)....... 15.75"
Maximum Tool Weight..................... 22 lbs.
ATC Tool Shank.......................... KM63
Rotary Tool Spindle Speed............... 12,000 RPM
Rotary Tool Spindle Horsepower (20%ED).. 24.8 HP (AC)
Rotary Tool Torque (20%ED).............. 88.5 ft-lbs.
Maximum Face Mill....................... 4"
Maximum End Mill........................ 1.25"
Maximum Drill........................... 1.25"
Maximum Tap............................. 1-8 UNC

LOWER TURRET AND TOOLING SPECIFICATIONS:
Type of Turret.......................... Drum
Tool Shank Height....................... 1.0" x 1.0" x 5"L
Tool Size (Boring Bar Maximum Diameter). 1.25"
Total Number of Tools................... 9
Tool Selection Method................... Bi-Directional
Tool Index Time (1 Step)................ 0.14 Sec.

AXIS TRAVELS:
B-Axis.................................. 225 Deg.
Y-Axis.................................. +/- 4.53"
X-Axis.................................. 24.8"
Z-Axis.................................. 62.4"
X2 Axis Lower........................... 9.06"
Z2 Axis Lower........................... 60.2"
Second Headstock W-Axis................. 60.24"

AXIS RAPID RATES:
Y-Axis.................................. 1023 IPM
X/X2 Axis............................... 1496 IPM
Z/Z2 Axis............................... 1496 IPM
Second Headstock W-Axis................. 1181 IPM
C-Axis.................................. 400 RPM
B-Axis.................................. 10 RPM

GENERAL SPECIFICATIONS:
Floor Space (WxL)....................... 201" x 111.5"
Machine Height.......................... 110.2"
Total Power Required (Machine Only)..... 96.2 KVA
NOTE: Actual Machine Main Transformer
KVA Rating Will be Greater.
Air Requirements........................ 72 PSI/14 CFM
Machine Weight.......................... 30,644 lbs.
