2012 TOYODA WELE AA965
Have one to sell?
ConditionUsed
1 available

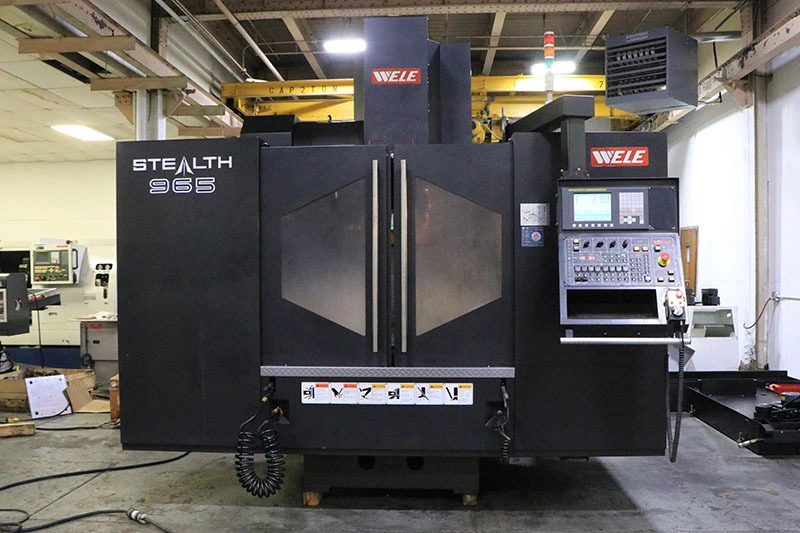

Vertical Machining Center, used condition. Features FANUC OI-MD Control, 43.3" x 25.6" table, X/Y/Z travels: 35.4"/25.6"/23.6", CAT 40 spindle, 8000 RPM, 20 ATC, and chip conveyor. Requires 116"L x 88"W x 115.7"H space.
TABLE SIZE ....................... 43.3" x 25.6"
X AXIS TRAVEL .................... 35.4" 900mm
Y AXIS TRAVEL .................... 25.6" 650mm
Z AXIS TRAVEL .................... 23.6" 600mm
MAXIMUM TABLE LOAD ............... 1980 LBS
SPINDLE TAPER .................... CAT 40
MAXIMUM SPEED SPEED .............. 8000 RPM
TOOL MAGAZINE CAPACITY ........... 20 ATC
RAPID TRAVERSE RATE .............. 988.8 IPM
SPINDLE NOSE TO TABLE............. 4.9" MIN TO 28.5" MAX
APPROX FLOOR SPACE REQUIRED ...... 116"L X 88"W X 115.7"H
MACHINE WEIGHT ................... 15,400 LBS
FANUC MODEL: OI-MD CONTROL
SET UP FOR RENISHAW PART PROBE
BOX WAYS
CHIP CONVEYOR
SIDE MOUNTED TOOL CHANGER
10/15 SPINDLE MOTOR
