2010 HAAS ST-30
Have one to sell?
ConditionUsed
1 available

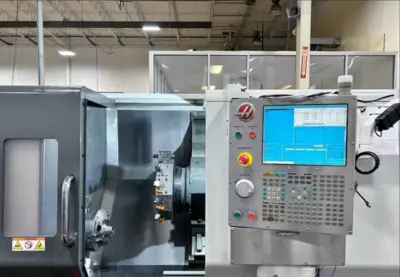

2010 HAAS ST-30 CNC Lathe in used condition. Equipped with a 10" hydraulic chuck, tool presetter, and high-pressure coolant system. Offers a 26" machining length and a 21" turning diameter with a max RPM of 3,400.
MAX CUTTING DIAMETER - 21"
MAX CUTTING LENGTH - 26"
X-AXIS TRAVEL - 12.5"
Z-AXIS TRAVEL - 26"
CHUCK SIZE - 10"
BAR CAPACITY - 3"
SPINDLE BORE - 3.5"
SPINDLE NOSE - A2-6
SPINDLE MOTOR - 30 hp
SPINDLE SPEED - 3,400 RPM
TURRET POSITIONS - 12
TURRET TYPE: BOLT-ON
2-SPEED GEARBOX
10”, 3-JAW KITAGAWA (B-210) HYDRAULIC CHUCK
PROGRAMMABLE TAILSTOCK
TOOL PRESETTER
CHIP CONVEYOR
HIGH-PRESSURE COOLANT (300 PSI)
RIGID TAPPING
USB PORT
