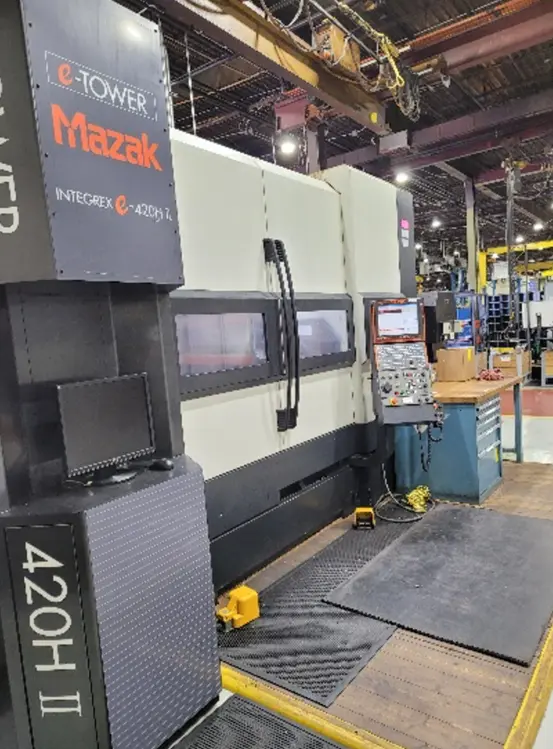

2006 MAZAK INTEGREX E-420HSII
Have one to sell?
ConditionUsed
1 available
Used MAZAK INTEGREX E-420HSII for sale, featuring 5-axis CNC operations, 7 axes, and 24.02" turning diameter. Equipped with a 15" main and sub chuck, 10,000 RPM milling spindle, and 80 ATC positions.
Turning Dia - 24.02"
Machining Length - 53"
# Axis - 7
Chuck Size (Main) - 15"
Chuck Size (Sub) - 15"
Spindle Bore (Main) - 3.46"
Milling Spindle rpm - 10,000
Power (Sub) - 35 hp
Max RPM (Main) - 4,000 RPM
Max RPM (Sub) - 4,000 RPM
X-Axis Travel - 29.13"
Y-Axis Travel - 16.14"
B-Axis Rotation - 30° + 210°
C-Axis Rotation - 360°
Z-1Axis Travel - 54.64"
Z-2 Axis Travel - 30”
Live Tooling - Yes
Sub Spindle - Yes
Taper (Milling Spindle) - CAT 40
ATC Positions - 80
