NAKAMURA-TOME SC-250
Have one to sell?
ConditionUsed
1 available
Used Nakamura-Tome SC-250 CNC Lathe. Features a 22.04" swing over bed, 5000 RPM spindle, and 12 tool stations. Equipped with FANUC 21iT CNC control, 8" 3-jaw hydraulic chuck, and chip conveyor. Approx. weight: 9,700 lbs.
SWING OVER BED ...................... 22.04"
SWING OVER CARRIAGE ................. 17.71"
MAX. TURNING DIAMETER ............... 13.77""
DISTANCE BETWEEN CENTERS ............ 28.09"
MAX. TURNING LENGTH ................. 23.62"
MAX. BAR CAPACITY ................... 2.0"
SPINDLE SPEED ....................... 5000 RPM
SPINDLE NOSE ........................ A2-6
X-AXIS TRAVEL ....................... 8.75"
Z-AXIS TRAVEL ....................... 25.0"
NUMBER OF TOOL STATIONS ............. 12
TOOL SIZE ........................... 1"
ID TOOL SIZE ........................ 1.5"
RAPID TRAVERSE X/Z .................. 629/787 IPM
TAILSTOCK QUILL DIAMETER ............ 3.54"
TAILSTOCK QUILL TAPER ............... MT4
TAILSTOCK QUILL STROKE .............. 3.93"
MAIN MOTOR .......................... 20HP
APPROX. WEIGHT ...................... 9,700 LBS

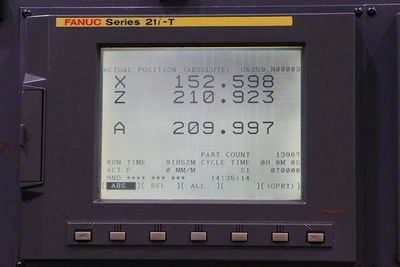

- FANUC 21iT CNC CONTROL
- 8" 3-JAW HYDRAULIC CHUCK
- 12 POSITION TURRET
- TAILSTOCK
- CHIP CONVEYOR
- ALL AVAILABLE TOOLHOLDERS AND MANUAL
