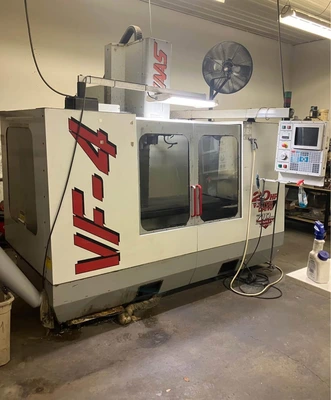

1998 HAAS VF-4
Have one to sell?
ConditionUsed
1 available
Used Vertical Machining Center features a powerful 20 HP motor, 7,500 RPM spindle, and 20 ATC for efficient operation. Specs include 50"x20"x25" travel, 52"x18" table, and max table load of 3,500 lbs. Ideal for high-precision tasks.
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 3,500 LBS
Spindle Motor: 20 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40 CT
Tool Changer: 20 ATC
Max Thrust X: 2550 lbf
Max Thrust Y: 2550 lbf
Max Thrust Z: 4200 lbf
Max Cutting: 650 ipm
Max Torque: 90 ft-lbf
Spindle Nose: 4.2" - 29.2"
Drive System: Inline Direct-Drive
Tool-to-Tool: 4.2 sec change
Coolant Capacity: 55 gal
Table Size: 52" x 18"
Weight: 13,300 LBS
