2017 JOHNFORD DMC-2600SH
Have one to sell?
ConditionUsed
1 available

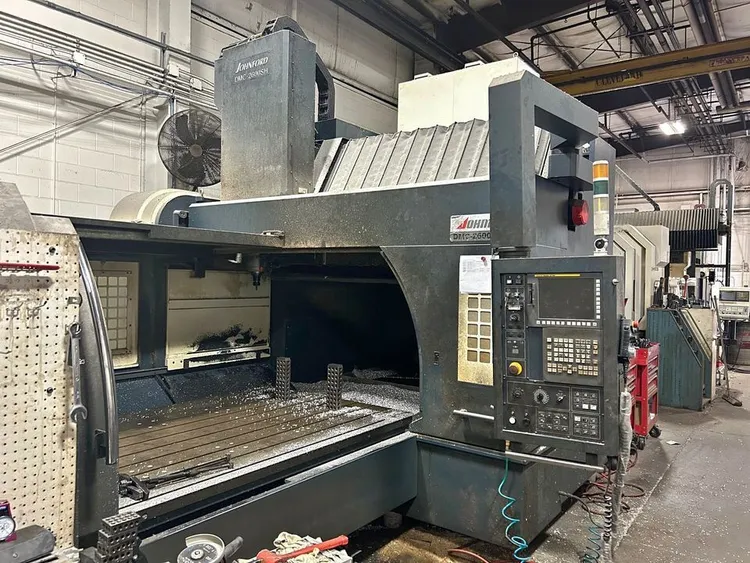

Gantry Machining Center, used, boasts 102"x70"x31.5" travel, 35 hp motor, max 15,000 RPM, 40-tool ATC, and a 106"x59" table. Ideal for precise, heavy-duty machining with 22,000 lbs max table capacity and ISO-50 spindle taper.
Table to Spindle: 5.9" Min / 37.4 Max.
Distance Between Columns: 72"
Table:
Table Work Surface: 106.2" x 59"
Max. Workload on Table: 22,000lbs.
Table Surface: Ground / T-Slotted (No. of T-Slots x width) 10 x 18mm
Spindle:
Spindle Motor: 35 HP
Spindle Torque: 575 ft/lbs. at only 375 RPM
Spindle Taper: ISO-50
Spindle Drive System: 2-Speed Gear Box
Spindle Speed: 0-6,000
Automatic Tool Changer:
Number of Tools 40 tools (60, 80, 120 opt.)
