HYUNDAI KIA SKT-2100SY
Have one to sell?
ConditionUsed
1 available

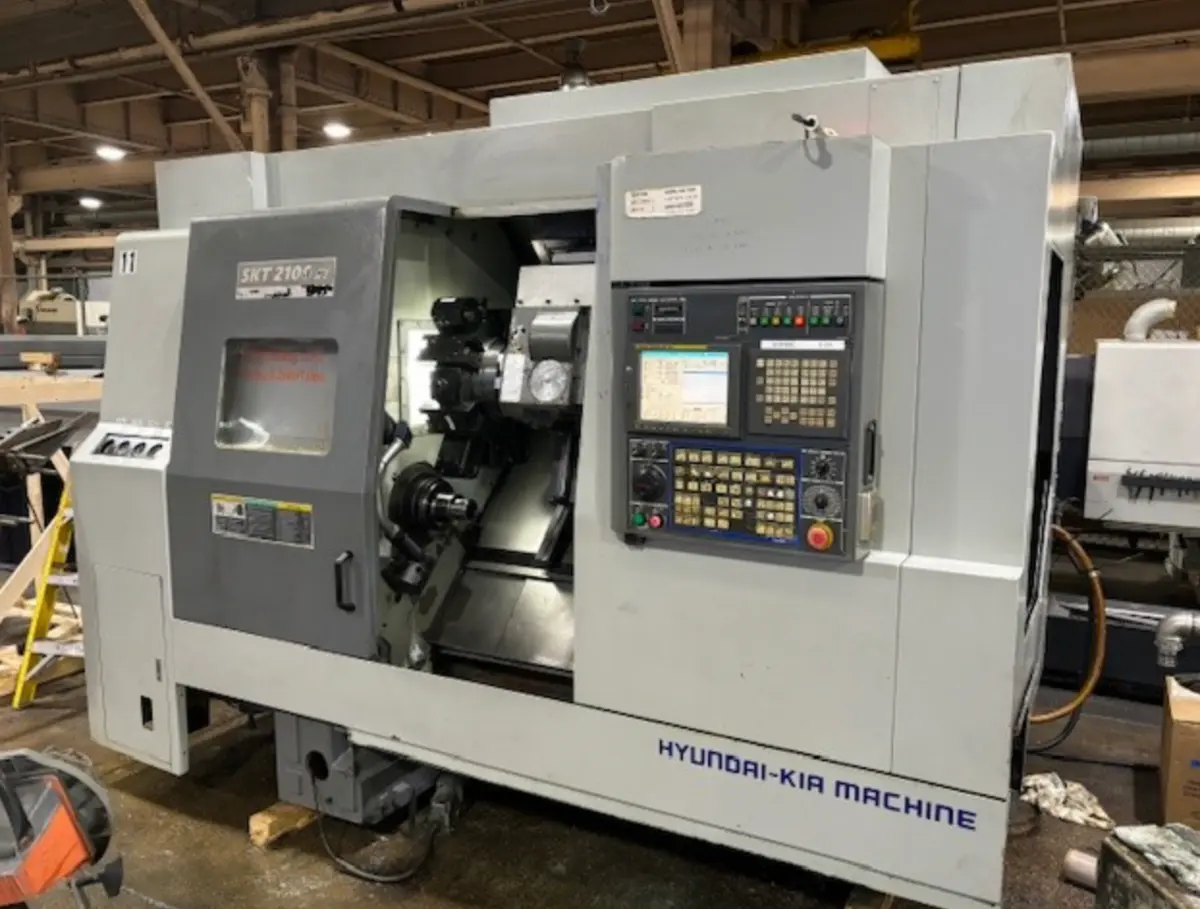

Used CNC Lathe with FANUC 18iTB CNC Control. Features a 24.8" swing, 4 axes, 2.56" bar capacity, 20HP, max RPM of 4,500, live tooling, and 12 tool positions. Includes subspindle and collet chuck on main spindle.
MAX. SWING ..................... 24.80"
SWING OVER CROSS SLIDE ......... 15.35"
MAX. MACHINING DIA. ............ 13.19"
MAX. TURNING LENGTH ............ 17.91"
BAR CAPACITY ................... 2.56"
SPINDLE SPEED, MAIN ............ 45-4500 RPM
SPINDLE NOSE, MAIN ............. A2-6
MAIN SPINDLE MOTOR ............. 20HP
C-AXIS INDEXING, MAIN .......... 0.001 Deg.
SUBSPINDLE SPEED ............... 60-6000 RPM
SUBSPINDLE NOSE ................ A2-5
SUBSPINDLE BAR CAPACITY ........ 1.38"
SUBSPINDLE MOTOR ............... 10HP
NUMBER OF TOOL POSITIONS ....... 12
TOOL SIZE, OD .................. 1"
TOOL SIZE, ID .................. 2"
ROTARY TOOL SPEED .............. 5,000 RPM
ROTATING TOOL TYPE ............. BMT 65
APPROX. MACHINE WEIGHT ......... 10,000 LBS.
- FANUC 18iTB CNC CONTROL
- TOOLSETTER
- COLLET CHUCK ON MAINSPINDLE
- 12 POSITION TURRET
- SUBSPINDLE
- Y-AXIS
- ALL AVAILABLE STATIC AND LIVE TOOLHOLDERS
