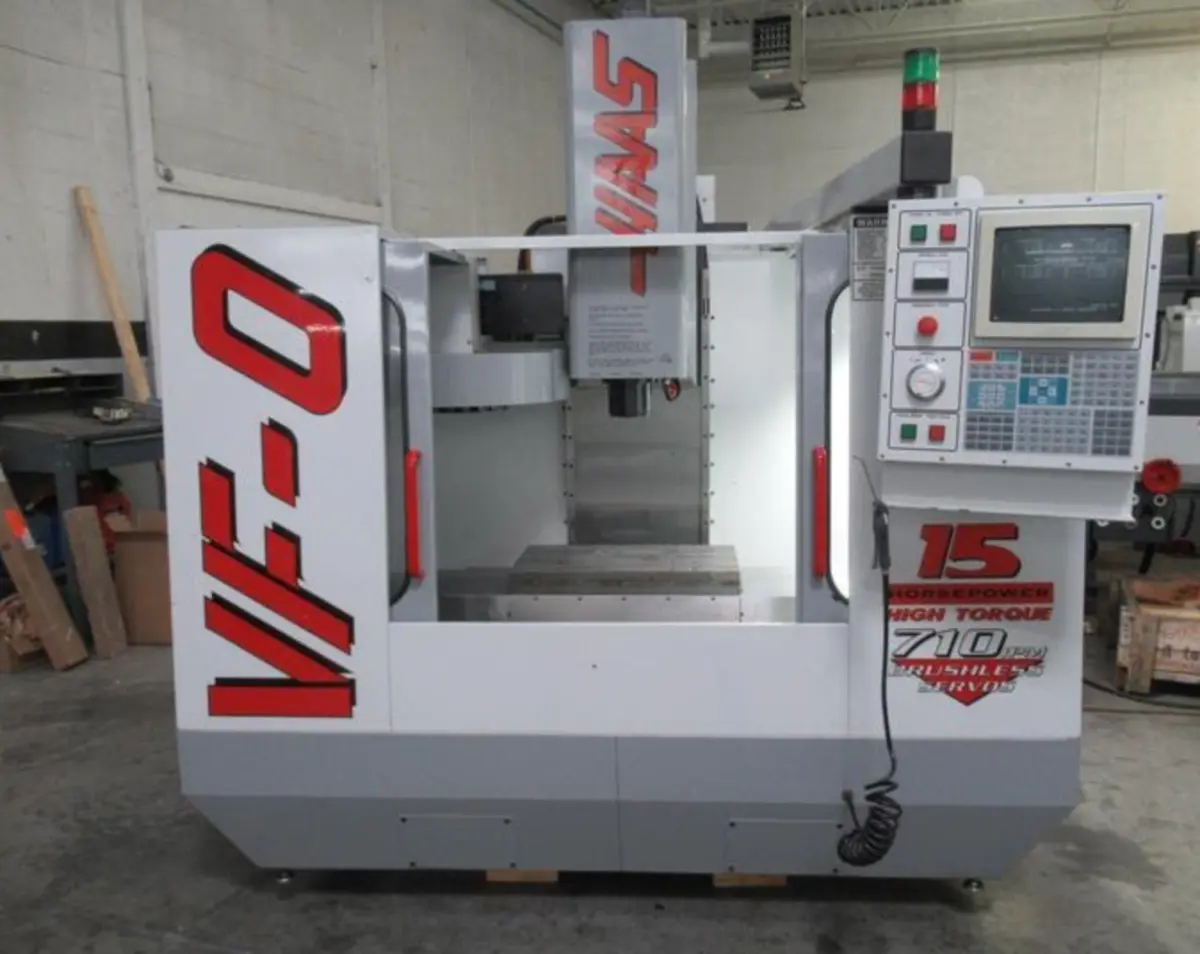

1997 HAAS VF-0
Have one to sell?
ConditionUsed
1 available
Used Vertical Machining Center: 20" x 16" x 20" travel, CAT-40 taper, 7,500 RPM. Features Haas 32-Bit CNC, USB emulator, 15 HP high-torque spindle, 2-speed gearbox, 4th axis drive, and coolant system. Only 1,525 spindle hours.
Table Size 26" x 14"
Machine Travels (X/Y/Z) 20" x 16" x 20"
Table Capacity 3,000 Lbs.
Spindle Taper Cat 40 Taper
Spindle Speeds 0 - 7,500 RPM
Transmission 2 Speed Gearbox
Rapid Traverse Rate (X/Y/Z) 710 IPM Brsuhless Servo Drives
Maximum Cutting Feed Rate 300 IPM
Tool Changer Style Carousel
Tool Changer Capacity 20 Stations
Tool Change Time 4.0 Seconds Tool to Tool
Max Tool weight 12 Lbs.
Spindle Drive 15 HP Vector Spindle Drive
Spindle To Table Distance 4" - 24"
Haas 32 Bit CNC Control, USB Emulator, 15 HP High-Torque Spindle, Vector Spindle, Drive, 2-Speed
Gearbox, 710 IPM Brushless Servo Drives, 4th Axis Drive and Connector (Brush Motor Style), Coolant
Pump and Tank, Coolant Skimmer. Only 1,525 Spindle Hours!
