2007 HARDINGE ELITE 51 MS
Have one to sell?
ConditionUsed
1 available

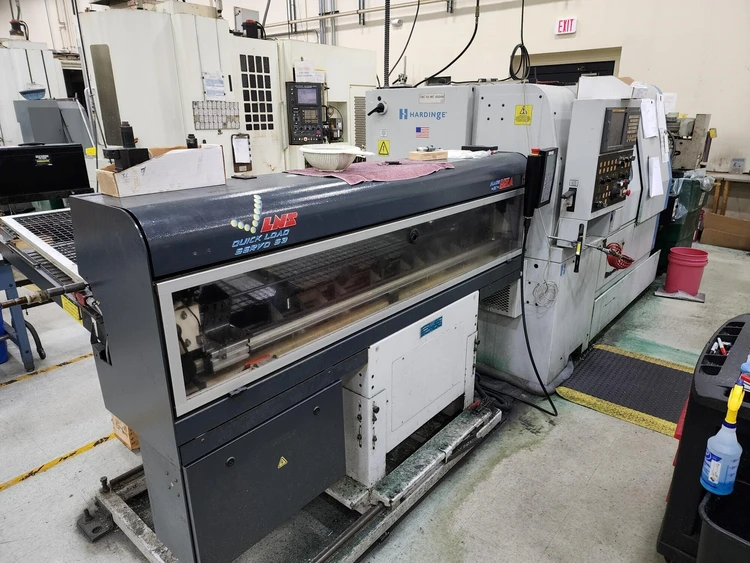

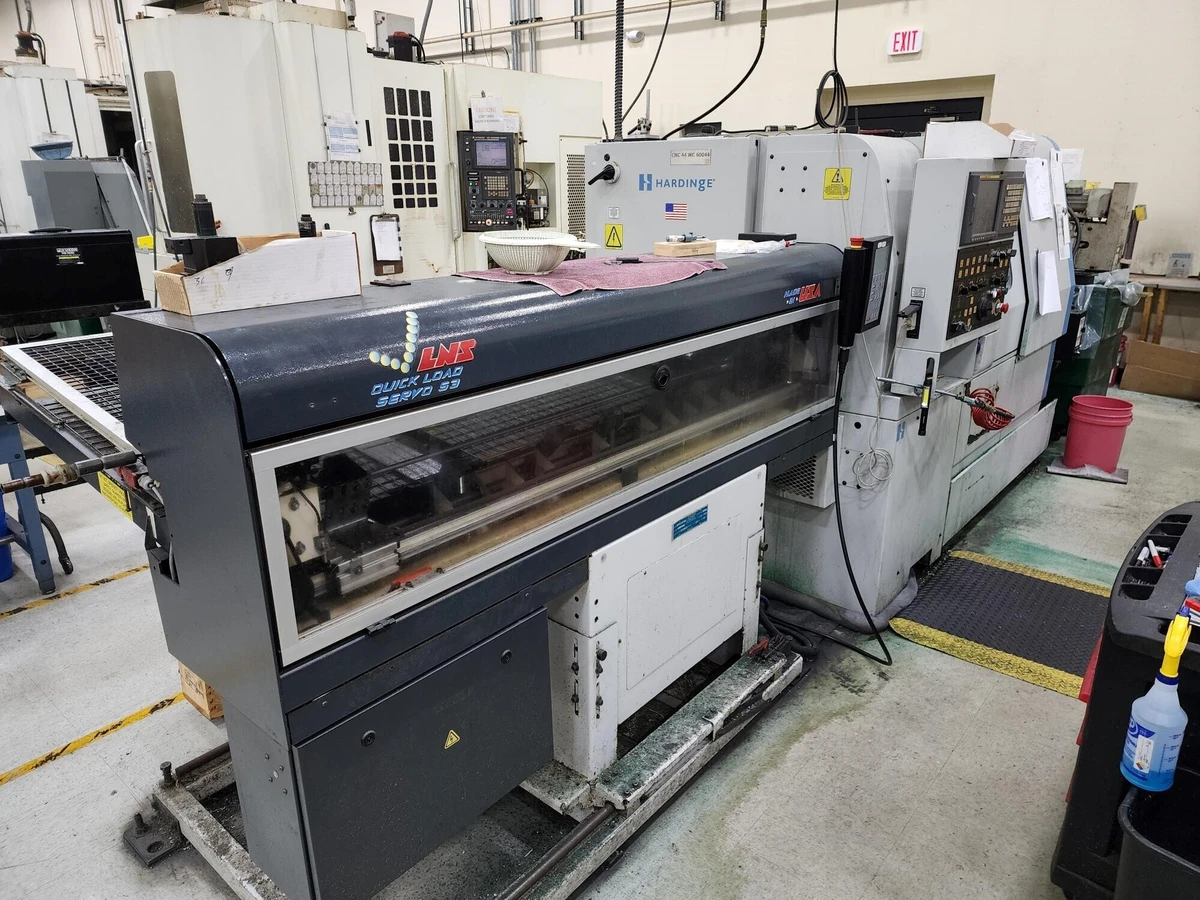

Used CNC Lathe, 25 hp, 5,000 RPM, 21" swing, 14" machining length, 2" bar capacity. Features FANUC 18i-TB control, sub spindle, tailstock, chip conveyor, and more. Equipped with LNS Quickload barloader and toolholders.
X-AXIS TRAVEL 5.74"
Z-AXIS TRAVEL 15.98"
C-AXIS INDEXING 0.001 DEGREES
BAR CAPACITY 2"
SPINDLE NOSE A2-6
SPINDLE MOTOR 25 hp
SPINDLE SPEED 5,000 RPM
RAPID TRAVERSE RATE - X-AXIS 945 in/min.
RAPID TRAVERSE RATE - Z-AXIS 945 in/min.
SUB SPINDLE - SPINDLE SPEED 6,000 RPM
TURRET CAPACITY 12 STATIONS
LIVE MILLING SPEED 5,000 RPM
LIVE MILLING MOTOR 5 hp
APPROX. WEIGHT 7500 LBS
- FANUC 18i-TB CNC CONTROL
- LNS QUICKLOAD SERVO S3 SHORT MAGAZINE BARLOADER
- PARTS CATCHER
- 20C COLLET READY MAIN SPINDLE
- 16C COLLET READY SUBSPINDLE
- FULL C-AXIS
- 12 POSITION TURRET
- CHIP CONVEYOR
- LARGE ASSORTMENT OF STATIC AND LIVE TOOLHOLDERS
