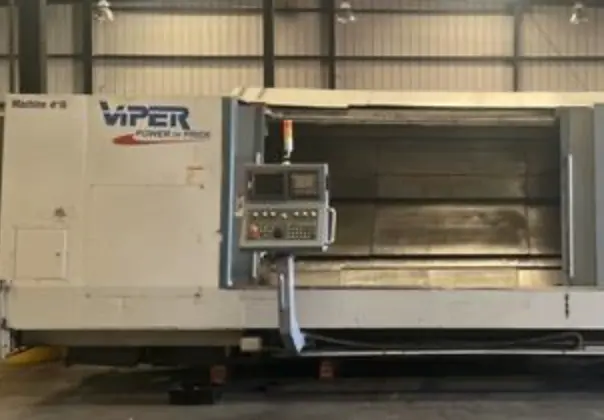

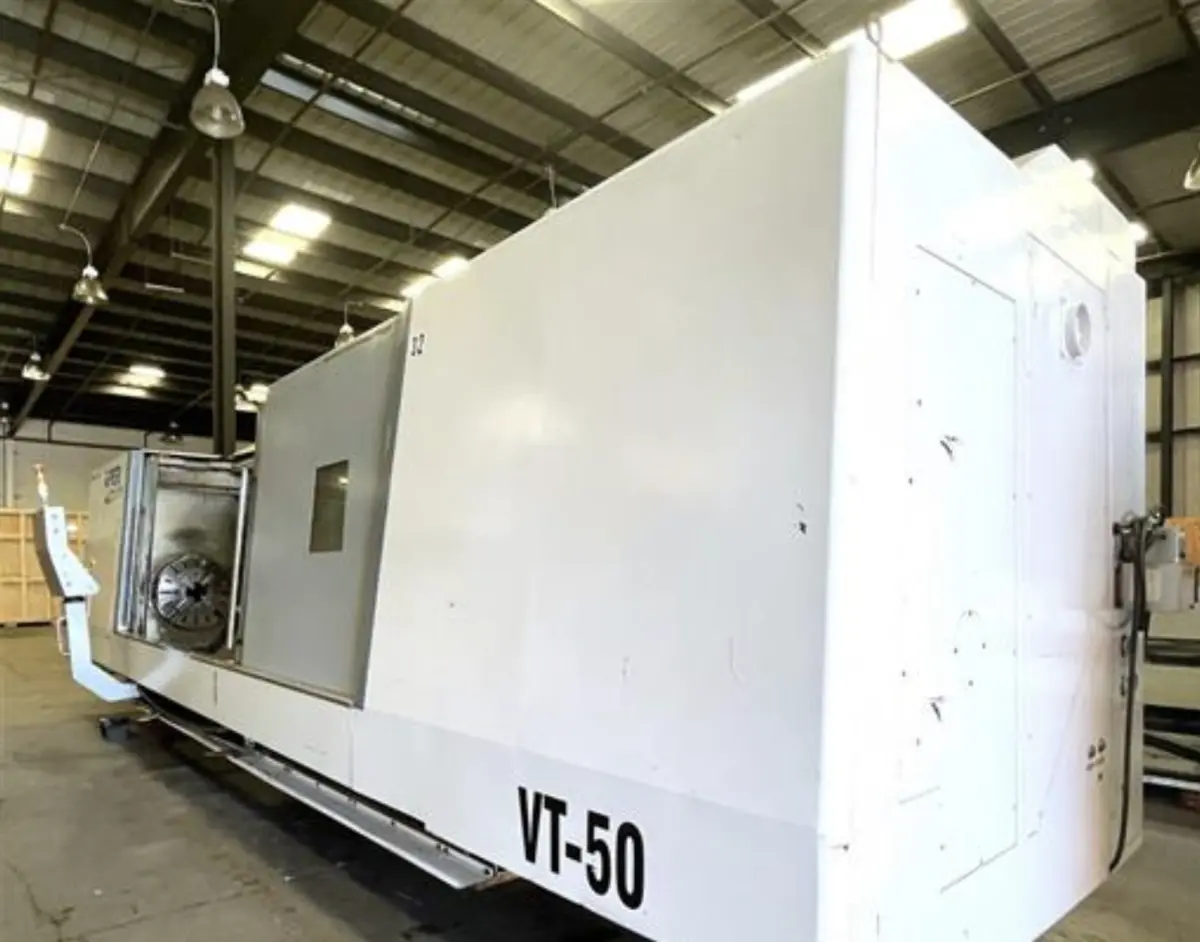

2011 MIGHTY VIPER VT-50AX/4000
Have one to sell?
ConditionUsed
1 available
Used CNC Lathe. Features 39" swing, 157" machining length, 50 hp power, and max 750 RPM. Equipped with FANUC 21I-TB CNC control, 25” 4-jaw chuck, 9.25" spindle bore, gear headstock, and chip conveyor. 46,200 lbs.
SWING OVER BED 39"
MAX. WORK DIAMETER 35"
DISTANCE BETWEEN CENTERS 157"
MAX TURNING LENGTH 155"
SPINDLE HOLE DIAMETER 9.25"
SPINDLE SPEED, 1-750 RPM
SPINDLE RANGES 2
SPINDLE NOSE A2-15
SPINDLE DRIVE MOTOR 50 HP

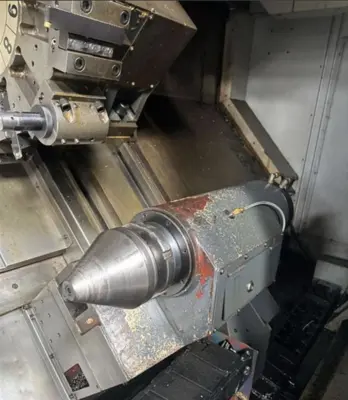

TAILSTOCK QUILL, TRAVEL 5.9"
TAILSTOCK QUILL DIAMETER 5.9"
TAILSTOCK QUIL, TAPER MT-6
MACHINE DIMENSIONS, W/ OUT CONVEYOR 292" X 111"
MACHINE DIMENSIONS, W/ CONVEYOR 347" X 111"
MACHINE HEIGHT 97"
APPROXIMATE WEIGHT 46,200 LBS

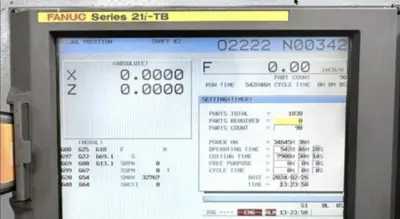

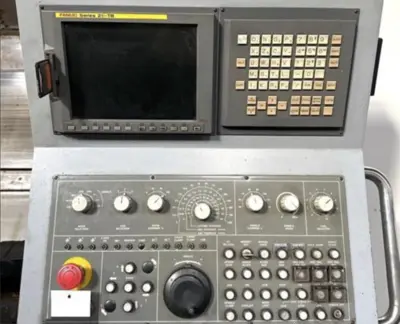

FANUC 21I-TB CNC CONTROL

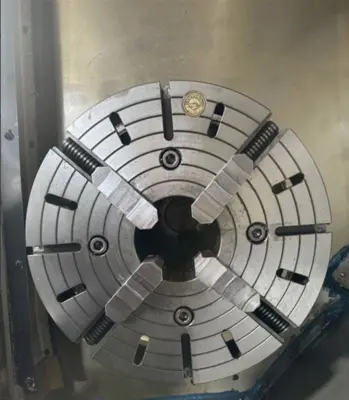

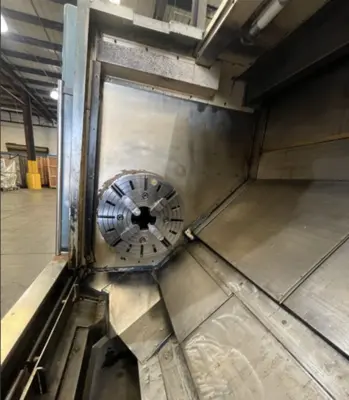

25” 4-JAW CHUCK
9.25" SPINDLE BORE

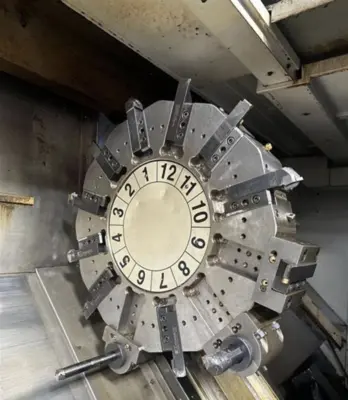

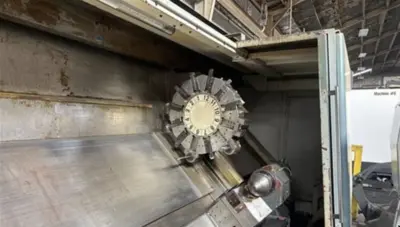

12 POSITION TURRET

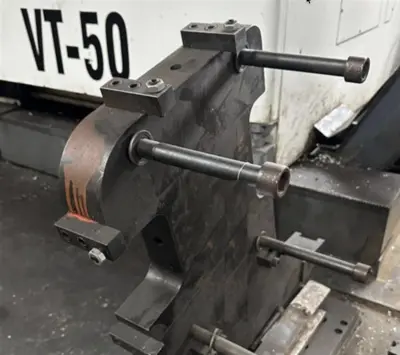

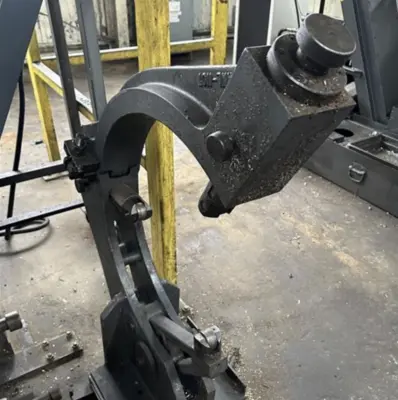

2-STEADY REST
GEAR HEADSTOCK
CHIP CONVEYOR
