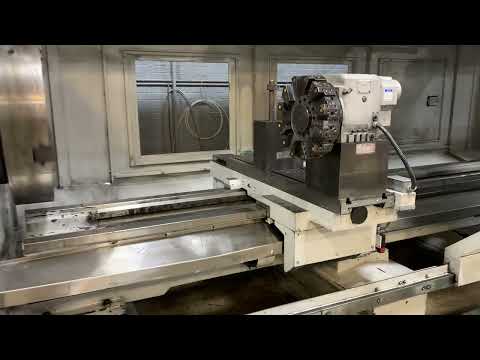

2010 MILLTRONICS ML40/160
Have one to sell?
ConditionUsed
1 available
CNC Lathe, used, with 39.7" swing, 160" machining length, and 35 hp power. Equipped with Milltronics 7200 CNC Control, 12-tool turret, and 14" spindle bore. Ideal for heavy-duty operations. Includes live center and tooling enhancements.
Swing over bed - 39.7"
Swing over gap - 50"
Swing over cross slide - 26.6"
Gap distance - 14.6"
Center distance - 160"
X-Axis travel - 21"
Z-Axis travel - 160"
Spindle bore - 14"
Spindle nose - A2-20
Spindle speed range low - 10 to 375 rpm
Spindle speed range high - 10 to 500 rpm
2-Speed AC Spindle motor (1 min / 30 min) - 35/25 HP
Tailstock quill travel - 9"
Tailstock quill diameter - 4.92"
Tailstock quill taper - MT6
Automatic turret - 12 Tools
Tooling size - 1"
Tool selection - bi-directional
X,Z axis rapid traverse rate - 500 ipm
Max cutting feed rate - 100 ipm
Machine height - 90"
Floor space - 272" L x 110" D
Machine weight, approx - 29,000 lbs.
Includes the following:
Milltronics 7200 Conversational CNC Control
12" LCD Active Matrix Color Display
14” Spindle Bore
12 Station Front Mount Pragati Turret
35/25 HP Spindle Motor. Range 1: 10-375 RPM, Range 2: 10-500 RPM
Software Package A (Thread Chasing, Constant Surface, Rigid Tap)
High Torque AC Digital Servo Drives
Edit Lockout Key
End of Cycle Light
Worklights
Remote Handwheel
Rear Mounted Chuck Flange with A2-20 mount (same as front)
50-300mm Steady Rest
250-500mm Steady Rest
31.5” 3-Jaw Chuck (no jaws)
Live Center
Automatic Metered Lubrication
Heavy Duty Metal Enclosure with Sliding Front Door
Chip Drawer Containment System
