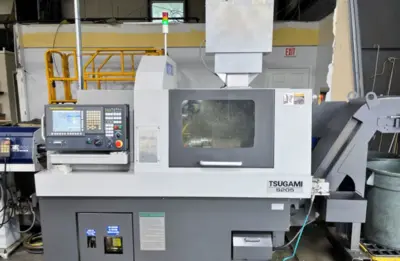

2018 TSUGAMI S205
Have one to sell?
ConditionUsed
1 available
Swiss Type Automatic Screw Machine, features 20mm spindle hole dia, 2.2 kW power, 8,000 RPM, 5 axes; includes FANUC 32iMB control, bar feeder, high-pressure coolant system, fire suppression, mist collector, conveyors, air blast. Cutting time 6,112 hours.
BAR CAPACITY 20 mm
MAX MACHINING LENGTH 8.2"
MAIN SPINDLE INDEXING FULL C-AXIS
MAIN SPINDLE SPEED 10,000 RPM
BACK SPINDLE INDEXING FULL C-AXIS
BACK SPINDLE SPEED 10,000 RPM
TOTAL TOOL CAPACITY (POSITIONS) 24
TOTAL LIVE TOOL CAPACITY (POSITIONS) 5
LIVE TOOL SPEEDS 8,000 RPM
CONTROLLABLE AXES 5
FANUC 32iMB CONTROL

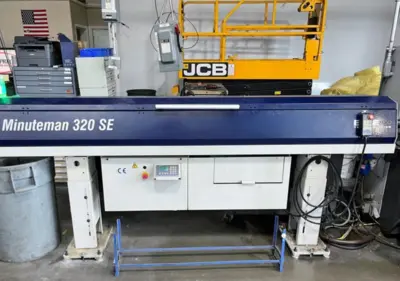

EDGE TECHNOLOGIES MINUTEMAN 320 SE MAGAZINE BAR FEEDER (8’)
CHUCKER KIT OPTION (ALLOWS MACHINE TO SWITCH FROM GUIDE BUSHING TO NON-GUIDE BUSHING)

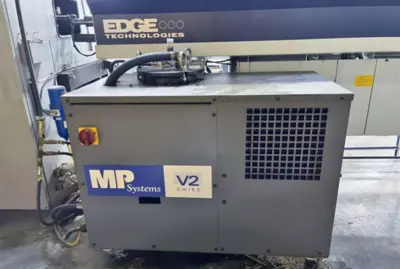

MP SYSTEMS V2 SWISS HIGH-PRESSURE COOLANT SYSTEM (2,000 PSI)
FIRETRACE FIRE SUPPRESSION
TRI-MIST MIST COLLECTOR
PARTS CATCHER
PARTS CONVEYOR
CHIP CONVEYOR
SUB SPINDLE AIR BLAST
FULL C-AXIS MAIN & SUB SPINDLE
SIMULTANEOUS MACHINING OF MAIN & SUB SPINDLE

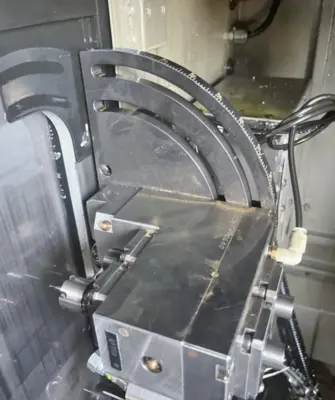

(1) ADJUSTABLE FRONT MILL FACE UNIT (WITH (2) MAIN LIVE & (2) SUB LIVE STATIONS)
13MM PUSHER & CHANNELS
20MM PUSHER & CHANNELS

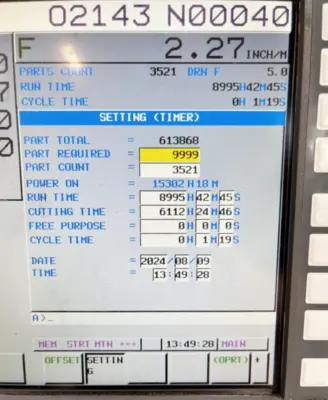

** AS OF AUGUST 2024, CUTTING TIME – 6,112 HOURS
