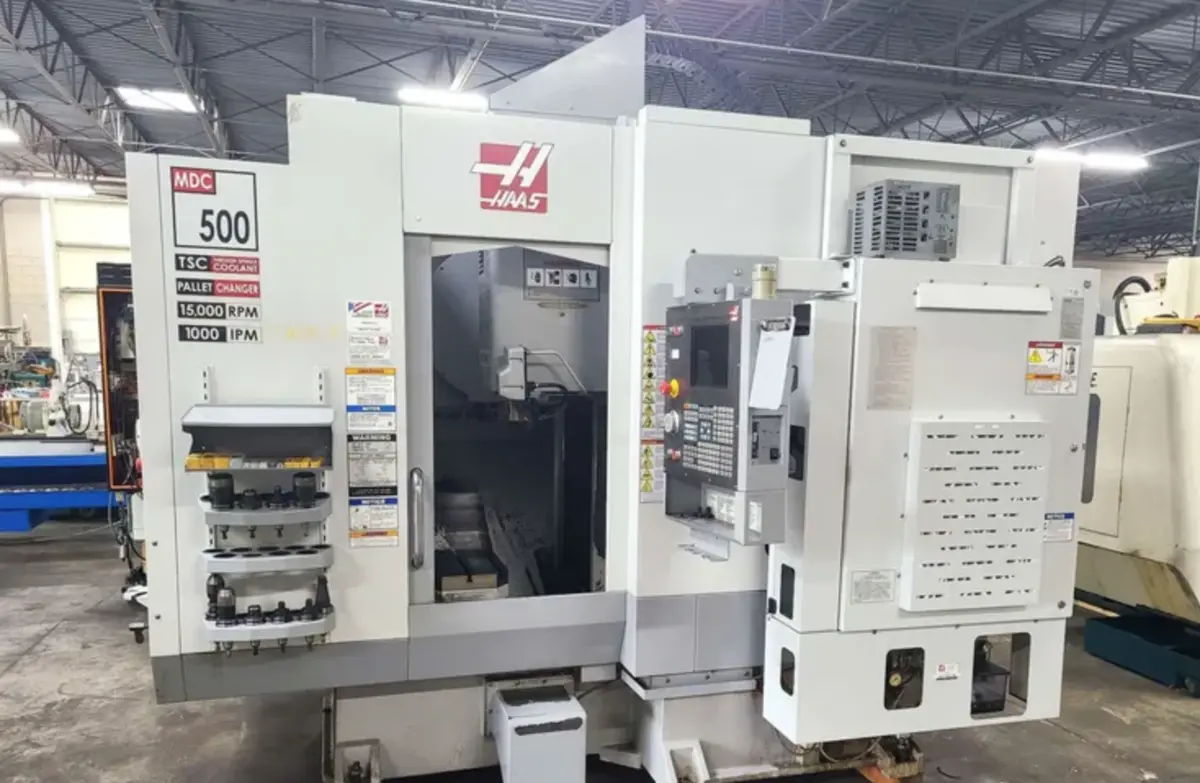

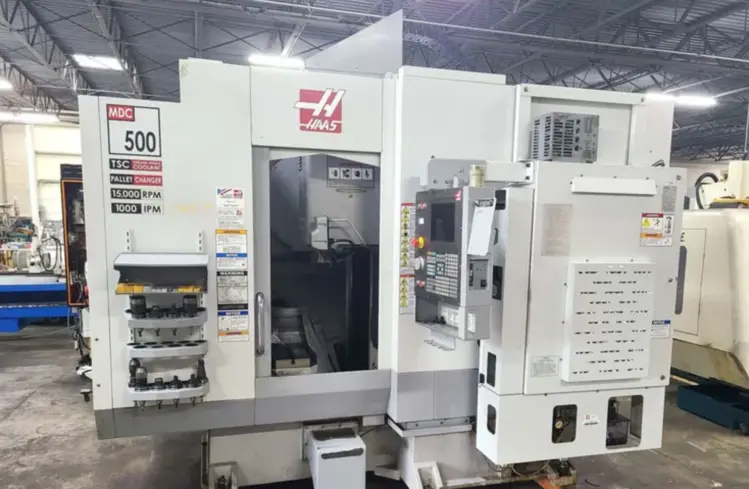

2006 HAAS MDC-500
Have one to sell?
ConditionUsed
1 available
Drilling & Tapping Center. This reliable used model from HAAS offers great performance for your machining needs.
TABLE LENGTH 20"
TABLE WIDTH 12.75"
NUMBER OF PALLETS 2
TABLE CAPACITY 700 lb
X-AXIS TRAVEL 20"
Y-AXIS TRAVEL 14"
Z-AXIS TRAVEL 20"
SPINDLE SPEED 15,000 RPM
SPINDLE MOTOR 20 hp
SPINDLE TAPER CAT 40
TOOL CAPACITY (ATC) 24
RAPID TRAVERSE - X AXIS 1,000 in/min.
CUTTING FEEDRATE 500 ipm
APPROX MACHINE WEIGHT 16,000 lb
APPROX MACHINE DIMENSIONS 133" x 105" x 101"
15,000 RPM OPTIONAL SPINDLE
THROUGH SPINDLE COOLANT
CHIP AUGER
COOLANT FILTRATION
HIGH SPEED MACHINING
RIGID TAPPING
AUGUST 2024, AFTERMARKET FLOPPY TO USB CONVERSION KIT INSTALLED
20 HP MOTOR, WIRED 3 PHASE, 60 HZ, 220 VOLTS
HOURS OF USE AS OF 6/25/2024:
- SERVO TIME: 21,167 HOURS
- MOTION TIME: 1,673 HOURS
- SPINDLE TIME: 716 HOURS
