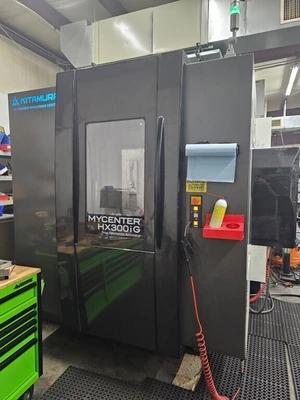

2020 KITAMURA MYCENTER HX300IG

Have one to sell?
513.486.0291
sales@ToolquipUSA.com
ConditionUsed
1 available
Request Financing
Have one to sell?

Overview

Type:
Horizontal Machining Centers
Manufacturer:
KITAMURA
Model:
MYCENTER HX300IG
Year:
2020
Stock #:
400527
Status:
For Sale

Description

Horizontal Machining Center. Impressive specs: X: 18.1", Y: 20.1", Z: 22", 18 hp, 15,000 RPM, 50 ATC, CAT 40 Taper. Feature-rich with 220 PSI Coolant Through Spindle, Shower Coolant.

X18.1"459.74 mm
Y20.1"510.54 mm
Z22"558.8 mm
Power18 hp13.4 kW
RPM15,000 RPM15,000 RPM

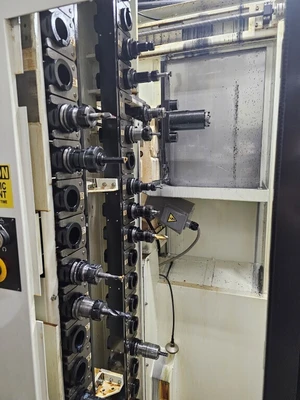

# ATC5050
TaperCAT 40CAT 40

Pallet:
Pallet Size (2 Pallets): 11.8" x 11.8"
Pallet Indexing: B-Axis
Maximum Load On Pallet: 550 Lbs
Rapid Traverse Rate: 2,362 IPM
Spindle Speeds (RPM): 15,000 RPM
Spindle Taper: CAT 40
Main Motor (HP): 18 HP
Max. Tool Length: 11.8"
Max. Tool Diameter: 5.9"
Max. Tool Weight: 22 Lbs

220 PSI Coolant Through Spindle
Shower Coolant
