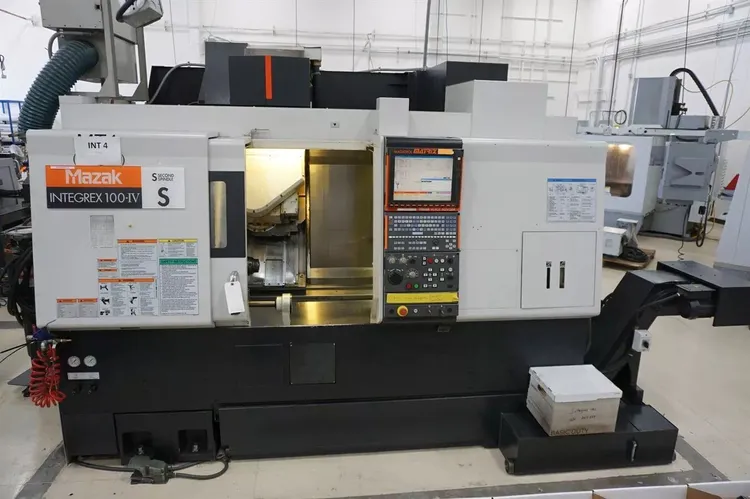

2008 MAZAK INTEGREX 100-IV S
Have one to sell?
ConditionUsed
1 available
Used CNC Lathe. Features 21.45" swing, 20.39" machining length, 4 axes, 6" chuck, 2" bar capacity, 10 hp, 6,000 RPM. Includes Mazatrol Matrix Control, second spindle, B-axis head, collet chucks, parts catcher, chip conveyor, mist collector.
Maximum Swing: 21.46"
Swing Over Cross Slide: 21.46"
Swing During Y-Axis Process: 16.22" - 21.46"
Maximum Machining Diameter: 21.46"
Bar Work Capability: 2"
Max Machining Length: 20.39"
Maximum Support Weight (Chuck Work): 330 lbs
Maximum Support Weight (Shaft Work): 441 lbs
Rotating Speed: 35 - 6000 RPM
Through-Hole Diameter: 2.4"
Motor Output: 15 hp
Tool Changer: 40-ATC
Tool Shank Type (Milling/Turning): KM63/CAPTO C6/BT40
Milling Spindle Speed: 12,000 RPM
Rapid Feed (X): 1181 IPM
Rapid Feed (Z): 1299 IPM
Rapid Feed (Y): 1023 IPM
X-Axis: 16.14"
Z-Axis: 22.44"
Y-Axis: 5.51"
Mazatrol Matrix Control
Second Spindle
B-Axis Head
Collet Chucks
Parts Catcher
Chip Conveyor
Mist Collector
