2021 JOHNFORD SL-500A
Have one to sell?
ConditionUsed
1 available
CNC Lathe, used, 22.8" swing, 28" machining length, 12" 3-jaw hydraulic chuck, 4.015" bar capacity, 35 hp, max RPM 2,800, 17.7" turning diameter. Features Fanuc 0iTD CNC Control, hydraulic tailstock, chip conveyor, and coolant system. Machine hours: 477.
Max Swing Over Bed.......................... 22.8"
Max Swing Over Carriage..................... 17.7"
Max Turning Diameter........................ 17.7"

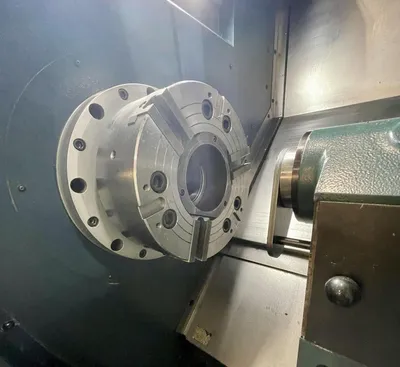

Chuck Size.................................. 12" 3-Jaw Hydraulic
Max Distance Between Centers................ 28"
X-Axis (Cross Travel).......................9.45"
Z-Axis (Longitudinal Travel)................ 23.2"
X-Axis Feed Rates........................... 0.01 - 315 IPM
X-Axis Rapid Traverse Rate.................. 590 IPM
Z-Axis Feed Rates........................... 0.01 - 315 IPM
Z-Axis Rapid Traverse Rate.................. 708 IPM
# Tool Turrets.............................. 1
Tool Turret Positions....................... 12
Spindle Nose................................ A2-11
Spindle Bore................................ 4.52"
Bar Capacity................................ 4.015"
Spindle Speed Range......................... 20 - 2,800 RPM
Spindle Horsepower......... 35 HP+2 speed gearbox
Tailstock Travel............................ 20.1"
Tailstock Quill Travel...................... 3.94"
Tailstock Quill Diameter.................... 3.35"
Tailstock Quill Taper....................... MT 5
Machine Hours............................... 477
Electrics................................... 220/3/60
Approx Machine Dimensions.................... 170" x 91"
Approximate Machine Height................... 88"
Approximate Machine Weight................ 16,000 LBS
Fanuc 0iTD CNC Control, Hydraulic Programmable Tailstock and Quill, 12" 3-Jaw Hydraulic Chuck, 4" Bar Capacity, Heavy Duty Slant Bed Construction, High/Low Spindle Range Max RPM 2800, Chip Conveyor and Coolant System.
