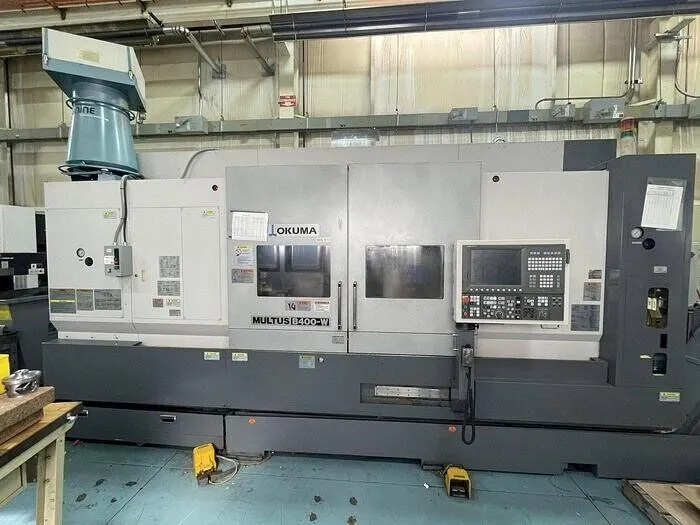

2008 OKUMA MULTUS B400-W
Have one to sell?
ConditionUsed
1 available
Used 5-Axis CNC Lathe with 8-axis capability. Features include 27.9" swing, 61" machining length, 15" chuck size, 4" bar capacity, 40 HP, and up to 10,000 RPM. Ideal for complex machining operations.
Chuck Size 15"
Distance Between Centers 60.83"
B-Axis Index 225 Degree at 0.001″
C-Axis Index 360 Degrees at 0.001
Max Machining Length 60″
Max Swing 27.9"
Cutting Length 60"
Swing Over Saddle 27.95"
Max Turning Length 60"
X Axis Travel 27.17"
Y Axis Travel 60.83"
Z Axis Travel 9.06"
Main Spindle Speed Range 38 – 3800 RPM
Main Spindle Nose A2-11
Main Spindle Bore 4.72″
Sub Spindle 12″ Chuck
Tool Taper in the M-Spindle Capto (C6)
Milling Spindle Speed Range 50 – 6000 RPM
Main Spindle 40/30 HP
Opposing Spindle 30/20 HP
Control OSP P200L Control
Control OKUMA OSP-200L CNC Control
Foot Switches
Lots of Tooling (approximately $25k)
Touch Setter M
Chip Conveyor
Coolant System
