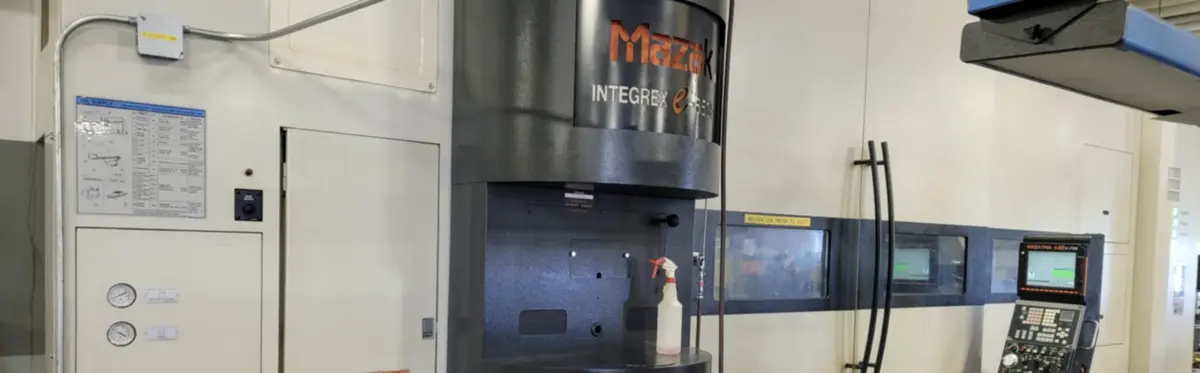

2005 MAZAK INTEGREX E650H
Have one to sell?
ConditionUsed
1 available
CNC Lathe. Equipped with a 50 HP spindle motor, C-axis, Y-axis, B-axis, high-pressure thru-spindle coolant, and Renishaw Probe. Features include 36.22" swing, 120" machining length, 10.2" spindle bore, and 80 tool positions.
C-Axis: Yes
Spindle Motor: 50 HP
Y-Axis: Yes
Spindle Bore: 10.2 inches
B-Axis: Yes
Spindle Nose: A2-11
Live Tooling / Milling: Yes
Live Milling HP: 50 HP HP
Bar Capacity: 10.2 inches
Live Milling Max RPM: 10,000 RPM
Distance Between Centers: 120 inches
Tool Positions: 80
Max Swing Over Bed: 36.22 inches
Max Cutting/Turning Diameter: 36 inches
X-Travel: 40.35 inches
Max Turning/Cutting Length: 120.78 inches
Z-Travel: 122 inches
Tailstock: Yes
Chuck Description: Schunk 3-Jaw Air Chuck
Programmable Tailstock: Yes
Chuck Type: Air
Steadyrest Type: Hydraulic
Chuck Size: 24 inches
Steadyrest Capacity: 12.2 inches
Tailstock
Programmable Tailstock
Steadyrest Type: Hydraulic
High Pressure Thru-Spindle Coolant
Chip Removal: Chip Conveyor
Probe Make/Model: Renishaw Probe
