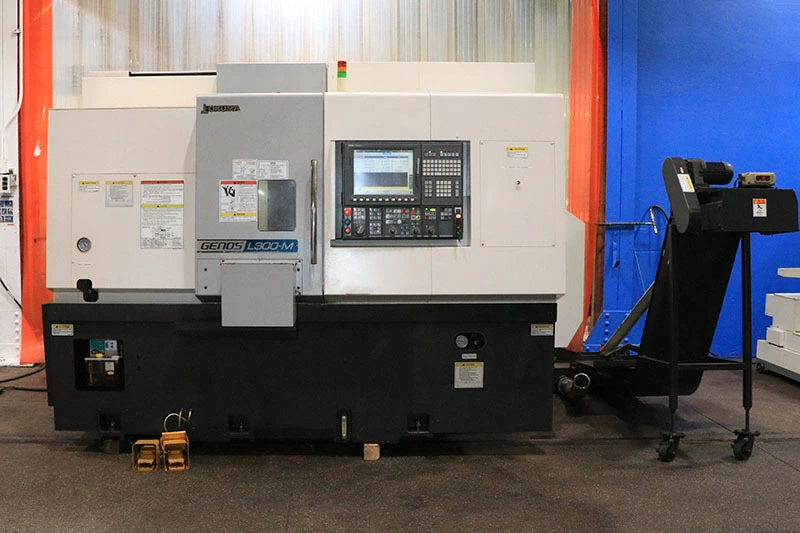

2014 OKUMA GENOS L300-MYW
Have one to sell?
ConditionUsed
1 available
5-axis CNC lathe, used. Features include 20.47" swing, 5.91" machining length, 10" chuck size, 3" bar capacity, 15 HP, 3800 RPM max, and 11.81" turning diameter.
Maximum Turning Diameter 11.81"
X-Axis Travel 9.25"
Y-Axis Travel 3.94"
Z-Axis Travel 20.47"
Spindle Nose / Bore / Bar Capacity A2-8 / 3.15" / 2.75"
Spindle Speed 3,000 rpm
Spindle Motor 20 hp
Number of Turret Positions 12
OD Tool Size .98" x .98"
ID Tool Size 1.57"
Subspindle Speed 6,000 rpm
Subspindle Nose Flat
Subspindle Motor 10 hp
Rotary Tool Speed / Rotary Motor 6,000 rpm / 7.5 hp
- OSP-P300L-R CNC Control
- Toolsetter
- 10" Kitagawa B210 3-Jaw Hydraulic Chuck on Mainspindle
- Royal 5C Collet Chuck on Subspindle
- 12 Position Turret
- Full C-Axis on Main & Subspindles
- (2) Live Toolholders
- All Available Static Toolholders
- All Available Manuals
