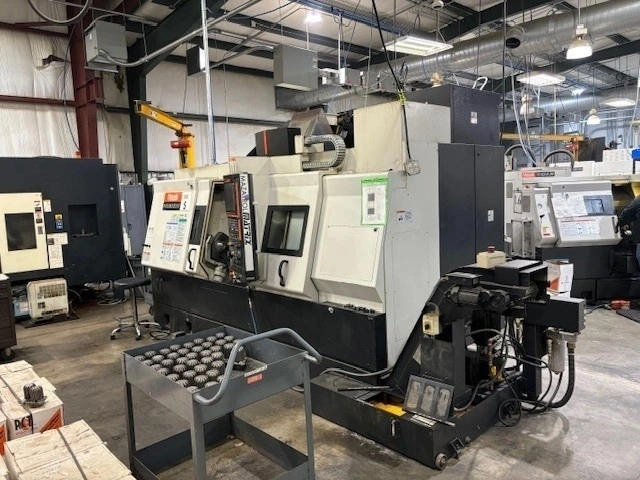

2009 MAZAK INTEGREX 200-IVS

MAZATROL MATRIX CONTROL
WINDOWS XP OPERATING SYSTEM FOR MAZAK MACHINE CONTROL.
15" COLOR LCD
EIA/ISO CODE INPUT FUNCTION (STANDARD)
ADD. EIA/ISO FUNCTIONS (REQ. EIA/ISO)
3-D COORDINATE CONVERSION
GOO SLOPE CONSTANT
SHAPE COMPENSATION FOR ROTARY AXES
CYLINDRICAL (G07) & POLAR COORDINATE
ABSOLUTE POSITIONING SYS (LINEAR AXES)
X,Y,Z PITCH ERROR COMPENSATION INPUT
COOLANT THROUGH MILLING HEAD
15KG/213 PSI THRU COOLANT/ FLOOD SIMUL-FLOWABLE
1ST SPINDLE MOTOR AC 22KW (30HP)
1ST SPINDLE SPEED 5000 RPM
C-AXIS 0.0001 DEGREE INCR. (1ST SPINDLE)
SECOND SPINDLE MOTOR AC 18.5KW (25HP)
MILLING-SPINDLE SYNCHRONOUS TAPPING
EIA/ISO 1ST SPINDLE & MILL SPDL IND.ROTATION
IC MEMORY CARD INTERFACE
INCH/METRIC CONVERSION
CARDBUS l/F (2-SLDT)
LAN PORT
USB 1/F
Y-AXIS CONTROL
SECOND SPINDLE SPEED 5000 RPM
2ND SPINDLE C-AXIS 0.0001 DEGREE INCR.
CHUCK AIR BLAST (SECOND SPINDLE)
DELETE STD. CHUCK & CYLINDER (1ST SPD.)
8” THRU-HOLE CHUCK BB-08
(1ST SPD.) THRU-HOLE CYL.S187
40 CAT-TOOL MAGAZINE
ROTARY-TOOL SPINDLE SPEED 12000 RPM
B-AXIS 0.0001 DEG/CENTERING (REQ. EIA/ISO)
B-AXIS INDEX 5 DEGREE (COUPLING CLAMP)
CHIP CONVEYOR SIDE DISPOSAL (HINGE TYPE)
TOOL EYE (AUTOMATIC)
AUTO CHUCK JAWS OPEN/ CLOSE (1&2 SPINDLE)
CHUCK OPEN/ CLOSE CONFIRM. (1&2 SPINDLE)
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
HYDRAULIC PRESSURE INTERLOCK
POWER TRANSFORMER FOR NORTH AMERICAN MKT
RELOCATION DEVICE
TURRET AIR BLAST
(FLOOD-COOLANT NOZZLE)
C1C2 SYNCHRONOUS FUNCTION
EIA /ISO FUNCTION
SIMULTANEOUS 5 AXES
TOOL TIP POINT CONTROL / SIMULTANEOUS 5 AXES
TOOL RADIUS COMPENSATION / 5 AXES
WORK MEASURING SYSTEM MP700
