Used 2007 HAAS TL-25BB | CNC Lathes
Have one to sell?
ConditionUsed
1 available

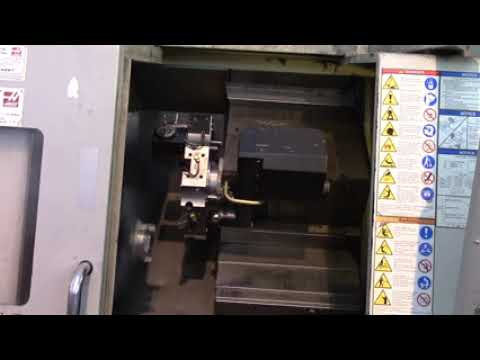

HAAS TL-25BB CNC Lathe, 2007 model, used. Features Haas CNC Control, sub-spindle, live tooling, 4" big bore drive system, collet chuck, part catcher, 40 HP vector drive, tool presetter, 12-position turret, coolant system, and chip conveyor.
Spindle Bar Capacity, Maximum 4"
Sub-Spindle Bar Capacity, Maximum 1.18"
Swing Over Apron, Maximum 30"
Swing Over Cross Slide 14.5"
Distance Between Centers 39"
Maximum Cutting Diameter 16"
Cutting Length, Maximum 34"
X-Axis Cross Slide Travel 11.3"
Z-Axis Carriage Travel 34"
Rapid Traverse 710 IPM
Spindle Speeds, Range to 2400 RPM
Live Tooling Spindle Speeds, Range 0 to 3000 RPM
Sub-Spindle Speeds, Range 0 to 4000 RPM
Spindle Motor, Horsepower 40 HP
Live Tooling Motor, Horsepower 5 HP
Sub-Spindle Motor, Horsepower 8 HP
Weight Approximately 17000 LBS
Haas CNC Control
Sub-Spindle - Live Tooling
4" Big Bore Drive System
Collet Chuck - Parts Catcher
(2) 3 Jaw Chucks (1) 15" Main Spindle & (1) 5.25" Sub-Spindle
40 HP Vector Drive - Tool Presetter- 12-Position Turret
Coolant System & Chip Conveyor
