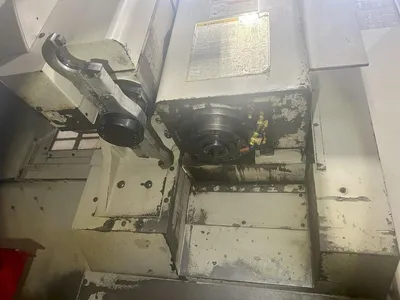

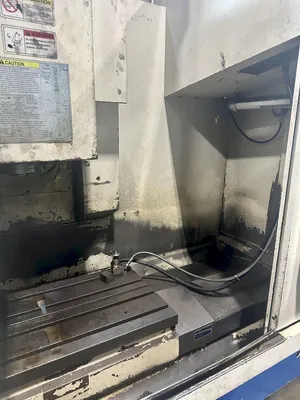

2004 OKUMA MC-V4020
Have one to sell?
ConditionUsed
1 available
Used Vertical Machining Center available. Specs: 40" X, 20" Y, 17.7" Z, 15 hp, 8000 RPM, 20 ATC, CT-40 taper, 48"x20" table, 20 hp spindle, 1181 IPM feed rate. Equipped with OSP-E100L CNC Control, high pressure coolant, chip conveyor, and tank.
# Axis............................................................. 3
Table Size....................................................... 48" x 20.08"
Table Load Capacity....................................... 1,500 LBS
X-Axis (Longitudinal Travel)..................................... 40"
Y-Axis (Cross Travel).............................................. 20.11"
Z-Axis (Vertical Travel).......................................... 17.72"
Max/Min Clearance Tabletop to Spindle Nose..................... 24" / 6.3"
Feed Rates, All Axes........................................ 1181 IPM
X-Axis Rapid Traverse Rate.......................... 1417 IPM
Y-Axis Rapid Traverse Rate.......................... 1417 IPM
Z-Axis Rapid Traverse Rate.......................... 1181 IPM
Spindle Horsepower.............................................. 20 HP
Spindle Speed Range......................... 40 - 8,000 RPM
Spindle Taper......................................... 40
Automatic Tool Changer Capacity (ATC)............... 20
Electrics................................................. 220/3/60
Approximate Machine Dimensions...... 114" x 111"
Approximate Machine Height.............................. 104"
Approximate Machine Weight................ 16,000 LBS
OSP-E100L CNC Control, 8000 RPM Spindle, 213 PSI High Pressure Coolant System, Chip Conveyor & Coolant Tank.
