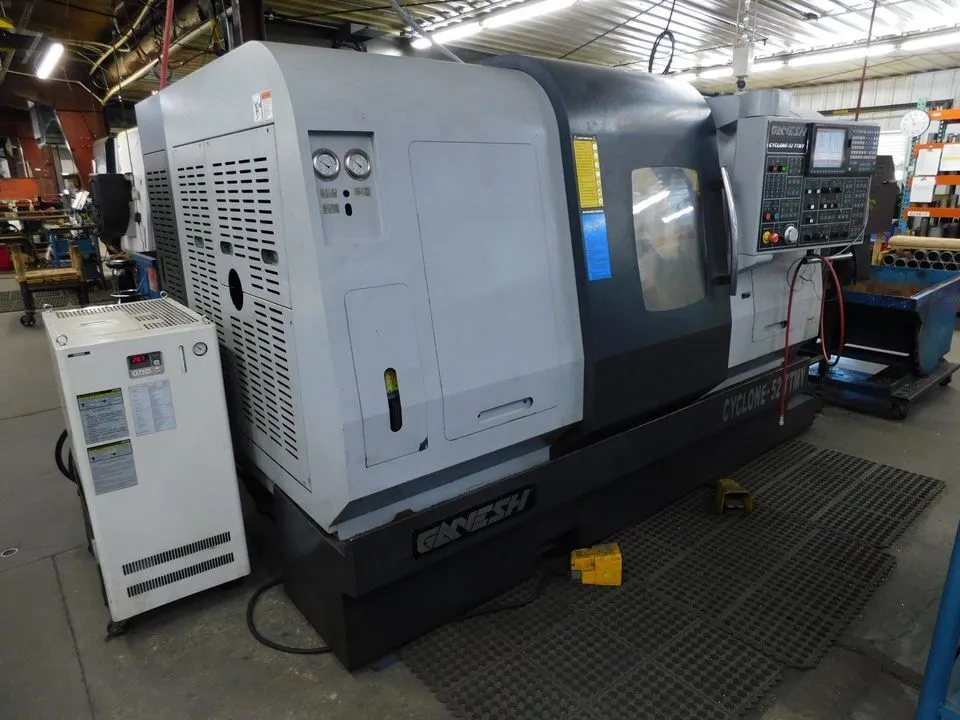

2012 GANESH CYCLONE-52TTMY
Have one to sell?
ConditionUsed
1 available
CNC lathe with 2" bar capacity, 20 hp power, and max RPM of 6,000. Equipped with Mitsubishi M700 CNC control, live tooling, B-axis, C-axis, Y-axis, dual 8" 3-jaw powered chucks. Max cutting length 31.10", max diameter 7.48".
X-travel: 5.94"
Z-travel: 17.32"
Distance between centers: 36"
Max swing over bed: 14.96"
Max turning / cutting length: 31.10"
Max cutting / turning diameter: 7.48"
Rapid traverse: 630/1573 IPM
Bar capacity: 2.00"
Chuck size: 8.0" 3-Jaw Powered
Spindle bore: 2.40"
Spindle speed: 6,000 RPM
Spindle motor: 20 HP
Total spindles: 2
Equipped With
Second bar capacity: 2.00"
Second chuck size: 8.0" 3-Jaw Powered
Second spindle bore: 2.40"
Second spindle speed: 6,000 RPM
Second spindle motor: 20 HP
Tool positions: 16
Tool Holder Type: BMT 65
Second turret positions: 16
Live milling max: 6,000 RPM
Electrical: 220V, 3Phase, 131Amp
Hydraulic Chiller/Tank: 10.5 gallons
Coolant Tank: 70 gallons
Controls: Mitsubishi M700 CNC Control
C-axis
Y-axis
Live tooling / milling
B-axis
