1998 MILLTRONICS PARTNER MB20A w/ 5th Axis
Have one to sell?
ConditionUsed
1 available

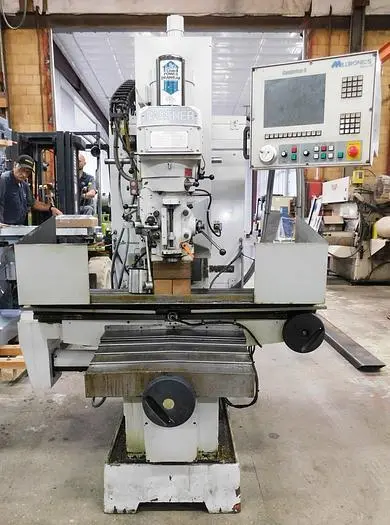

Used Vertical Mil with 5th axis. Table: 16" x 54", X/Y/Z travel: 40"/20"/24". Power: 7.5 hp, RPM: 4,000, Taper: CAT40. Includes Centurion 6 control, Troyke TDL-10 trunnion table, and splash pads.
Table size - 16" x 54"
X axis travel - 40"
Y axis travel - 20"
Z axis travel - 24"
Quill travel - 6"
Maximum table feed - 300 IPM
Maximum table load - 2,500 LBS
Lower speed range - 60-500 RPM
High speed range - 500-4000 RPM
Spindle taper - CAT40
Main motor - 7.5 HP, 220V, 3 PH
Centurion 6 control
5th axis - Troyke TDL-10 trunnion table
Splash pads
