2003 TAKAMAZ X200
Have one to sell?
ConditionUsed
1 available

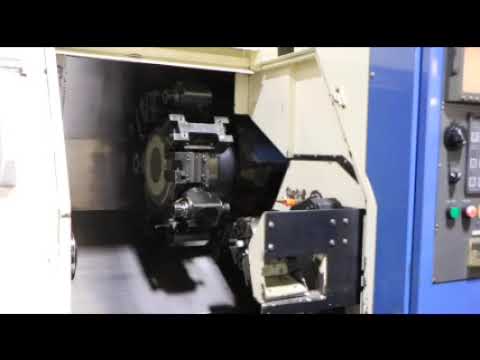

2003 TAKAMAZ X200 CNC Lathe: 13.38" turning dia., 20.07" max length, 2" bar dia., 5000 RPM spindle, 12-position turret, equipped with FANUC 18iTB control, collet chuck, parts catcher, chip conveyor, and live toolholders.
OPTIMUM TURNING DIA. ............... 13.38"
MAX. TURNING LENGTH ................ 20.07" (Collet)
MAX. BAR DIA. ...................... 2"
SPINDLE NOSE ....................... A2-6
MAX. SPINDLE SPEED ................. 5,000 RPM
TURRET TYPE ........................ 12 STATION VDI
MAX. TOOL SIZE ..................... 1" Square
MAX. BORING HOLDER ID .............. 1.57"
X-AXIS STROKE ...................... 9.44"
Z-AXIS STROKE ...................... 21.65"
ROTARY TOOL SPINDLE SPEED .......... 4000 RPM
ROTARY TOOL MOTOR .................. 5.5/3.7 Kw
MAIN SPINDLE MOTOR ................. 15/11 Kw
- FANUC 18iTB CNC CONTROL
- ATS S-26 COLLET CHUCK ON MAINSPINDLE
- SMW AUTOBLOK 165BH 6" 3-JAW HYD CHUCK ON SUBSPINDLE
- FULL C-AXIS ON MAINSPINDLE
- 12 POSITION TURRET
- PARTS CATCHER
- CHIP CONVEYOR
- (4) LIVE TOOLHOLDERS
- MISC STATIC TOOL HOLDERS
- LNS ECOLOAD SHORT MAGAZINE BARFEED (NOT CURRENTLY INTERFACED WITH THE MACHINE)
