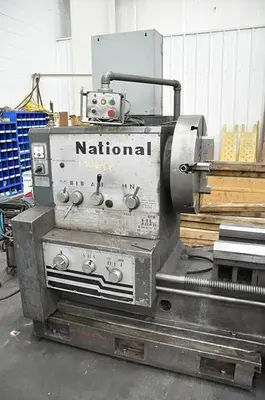

1982 NATIONAL LSP32120
Have one to sell?
ConditionUsed
1 available
Swing Over Bed Ways: 32"
Swing Over Cross Slide: 22"
Swing in Gap: 55" Swing x 15" Long from Chuck Face
ASA Direct Spindle Nose
Spindle Bore: 6-1/4"
(12) Spindle Speeds: 9 to 600 RPM
Square Turret Tool Post: 7-1/4"
Quill Diameter: 4-1/4" with #6 Morse Taper
Feeds: 0.0032 - 0.105 IPR
Metric Threads: 0.5 - 14 MM
Inch Threads: 1.25 - 27 TPI
25 HP Main Motor, Wired for 3 Phase 60 Hz 220 Volts
Removable Gap Bed
Inch/Metric Threading
24" 4 Jaw Chuck with 1 Piece Hard Reversible Jaws with 6-3/8" Thru Hole
4 Way Rapid Travers to Carriage and Cross Slide
Trav-A-Dial Unit on Carriage
2-Axis Power Rapid Traverse
Inch/Metric Graduated Cross Slide Dial and Compound
Tailstock Quill has 2 Speed Manual Hand Crank
15" Roller Tip Steady Rest, NO Bed Clamp Piece
Base Designed for Coolant but NO Coolant Pump, Piping or Chip Pans
Hard Bed Ways in Good Condition
End Guard Gears Needed for Full Set: 40,90,80,110,60,115,48,70,78,30,127,45,60
*Note from seller: We went through the work of refurbishing the gear box for the carriage, it was rough. It got full disassembly, cleaning, new bearings and seals. After that just for whatever reason we pulled the compound off and found the state of the T slot that the bolts go in that hold the compound to the cross slide. There is nothing we can do to fix that. I think you could weld or braze it and re-machine it but that is not something I am going to do and have just decided to offer the machine AS IS.
