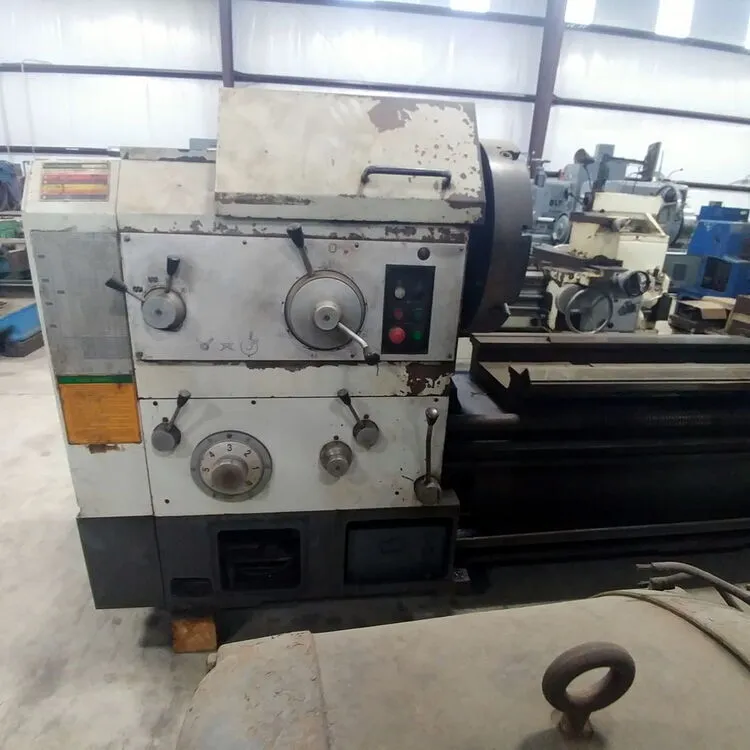

VANGUARD CW6280
Engine Lathes
| Swing | 32" |
| Centers | 118" |
| Spindle Bore | 5.5" |
| Power | 20 hp |
| RPM | 720 RPM |
| Swing Over Cross Slide | 20" |
Swing Over Bed Way: 32"
Swing Over Cross Slide:20"
Center Distance: 118"
Spindle Bore: 5.5"
Spindle Speeds: 5.4 To 720 Rpm's
Spindle Nose: D-11
Chuck Size 24" 4-Jaw With 2 Piece Jaws (New Gator)
Chuck Size 18" 3-Jaw With 2 Piece Jaws (New Gator)
Feeds: 0.06-0.912 mm/I.P.R.
Threads: Inch & Metric
Main Motor: 20 Hp.
Steady Rest Yes
Aloris Tool Post D Size
