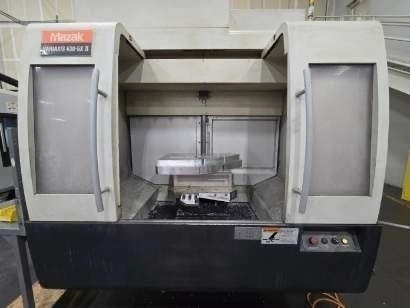

Used 2007 MAZAK VARIAXIS 630-5XII | Vertical Machining Centers

Table Size
19.69” x 19.69”
#/Pallets
2
Max Table Load Capacity
1102 lbs.
Product Distance From Table Top Spindle Nose
7.09" - 27.17"
X Axis Travel
24.8"
Y Axis Travel
30.12"
Z Axis Travel
20.08"
A Axis Travel
-120 +/- 30
C Axis Positioning
+/- 360 Degrees
Main Spindle RPM
12,000 RPM
Rapid Traverse Rate X
2047 IPM
Rapid Traverse Rate Y
2047 IPM
Rapid Traverse Rate Z
2047 IPM
Number of Tool Stations
80 ATC
Maximum Tool Diameter
3.15"
Max Tool Dia Adjacent Pocket Empty
4.92"
Maximum Tool Length
14.17"
Maximum Tool Weight
17.6 Lbs.
Spindle Taper
CAT 40
Main Spindle HP
30/20 HP
