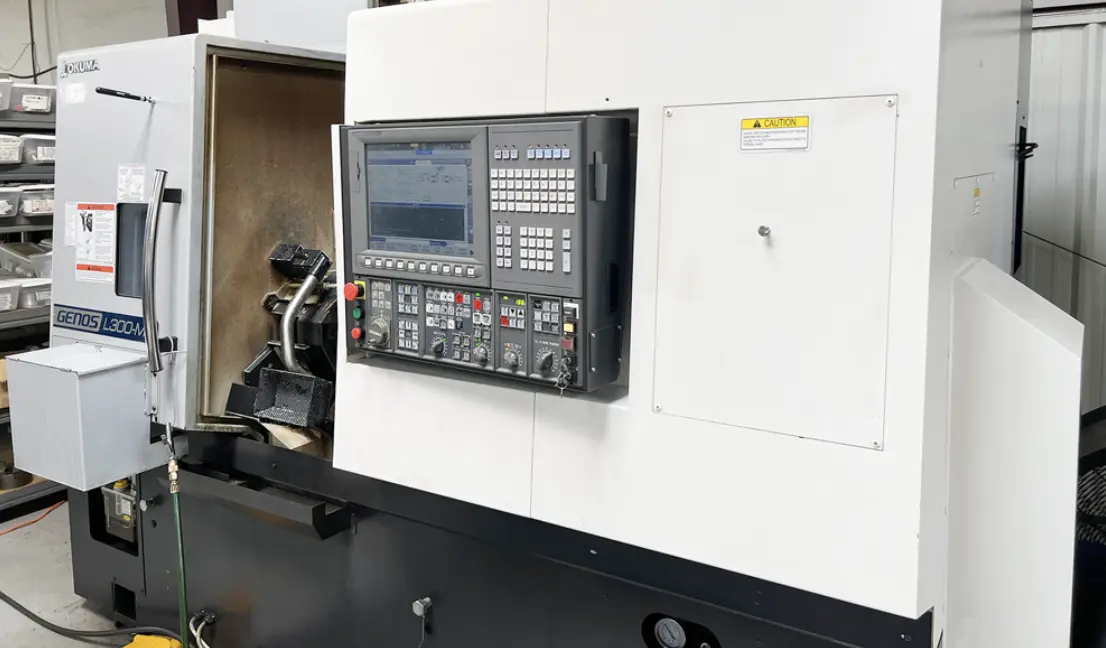

2018 OKUMA GENOS L300-MYW

Have one to sell?
513.486.0291
sales@ToolquipUSA.com
ConditionUsed
1 available
Request Financing
Have one to sell?

Overview

Type:
5-Axis or More CNC Lathes
Manufacturer:
OKUMA
Model:
GENOS L300-MYW
Year:
2018
Stock #:
22146350
Status:
For Sale
# Axis55
Swing20.47"519.94 mm
Machining Length5.91"150.11 mm
Chuck Size10"254 mm
Bar Capacity3"76.2 mm
Power20 hp14.9 kW
Max RPM3,000 RPM3,000 RPM
Turning Dia11.81"299.97 mm
Weight13,700 LBS.13,700 LBS.

MAXIMUM TURNING DIAMETER: 11.81"
X AXIS TRAVEL: 20.47"
Y AXIS TRAVEL: 3.94"
Z AXIS TRAVEL: 18.11"
W AXIS TRAVEL: 20.47"
SPINDLE SPEEDS: 3000 RPM
SPINDLE MOTOR: 20 HP
SPINDLE NOSE: A2-8
SUB SPINDLE SPEED: 6000 RPM
SUB SPINDLE MOTOR: 10 HP
LIVE MILLING SPEED: 6000 RPM
LIVE MILLING MOTOR: 7.5 HP
WEIGHT (APPROXIMATE): 13,700 LBS.

OSP P300LA CNC CONTROL
10" CHUCK
12 STATION TOOL TURRET
C-AXIS MILLING
SUB SPINDLE
PARTS CATCHER
TOOL STTER
COLLET CHUCK ON MAIN SPINDLE
3-JAW CHUCK ON SUB SPINDLE
MISC. TOOL HOLDERS (CURRENTLY INSTALLED ON TURRET)
BAR FEED INTERFACE (UNIVERSAL TYPE)
AOT IGF P3-INC M/W/Y
HELICAL CUTTING FOR X, C AND Z AXES
OFF-CENTER TURNING FUNCTION
RAPID TRAVERSE OVERRIDE SWITCH
CHIP CONVEYOR

*NOTE: LOW CUTTING HOURS - LESS THAN 1000
