2002 HAAS VF-4

Have one to sell?
513.486.0291
sales@ToolquipUSA.com
ConditionUsed
1 available
Request Financing
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
HAAS
Model:
VF-4
Year:
2002
Stock #:
22145527
Status:
For Sale
X50"1,270 mm
Y20"508 mm
Z25"635 mm
Power30 hp22.4 kW
RPM8,100 RPM8,100 RPM
# ATC2020
TaperCT or BT 40CT or BT 40

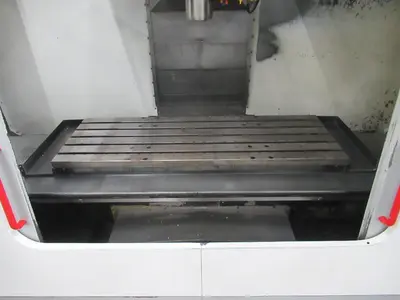

Table-W18"457.2 mm
Table-L52"1,320.8 mm
# Axis33
ControlCNC (HAAS)CNC (HAAS)
Dimensions118.00"L x 110.00"W x 119.50"H118.00"L x 110.00"W x 119.50"H
Weight13300.00 lbs.13300.00 lbs.

Table Capacity 3,500 Lbs.
Transmission Direct Belt Drive
Rapid Traverse Rate (X/Y/Z) 1,000 IPM
Maximum Cutting Feed Rate 650 IPM
Tool Changer Style Side-Mount Twin-Arm
Tool Change Time 2.8 Seconds
Tool Changer Capacity 24 Stations
Max Tool weight 12 Lbs.
Spindle Drive 20 HP Vector Spindle Drive
Spindle To Table Distance 4" - 29"

Haas 32 Bit CNC Control
15,000 RPM Max Spindle Speed
24 Station Twin-Arm Automatic Tool Changer
4th Axis Drive and Connector, (Brush Motor Style)
1,000 IPM Brushless Servo Drives
20 HP Vector Spindle Drive
Programmable Coolant Nozzle
Remote Jog Handwheel

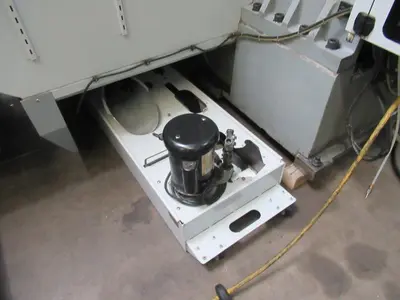

Coolant system
Chip Auger
High Intensity Lighting
(3) Indexers with Horizontal Tombstone Vises
