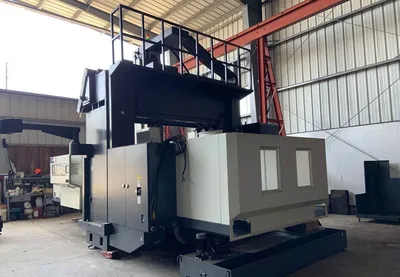

2008 Mighty Viper VMC-DZ-3240AG Vertical Machining Center. Specs include X/Y/Z travels of 120.08"/94.49"/42.13", 30 hp spindle, and 6,000 RPM. Features a 40-tool capacity, Mitsubishi CNC, and multiple advanced systems.
Working Table:
Surface Area: 125.98" x 80.31"
Maximum Table Load: 24,250 Lbs
Travels:
X-Axis: 120.08"
Y-Axis: 94.49"
Z-Axis: 42.13"
Distabce from Spindle End to Table: 15.35" - 57.48"
Width Between Columns: 98.82"
Distance from Spindle Center to Column: 16.22"
Spindle:
Type: Geared
Speed: 6,000 RPM
Taper: ISO #50
Feeds:
Cutting Feedrate: 0.34" - 196 IPM
Rapid Traverse Rate (X, Y, Z): 393 IPM
Tool Changer:
Type: Arm
Storage Capacity: 40
Maximum Tool Weight: 44 Lbs
Maximum Tool Size: 5.11" x 13.78"
Selection: Random
Tool Shank: CAT 50
Pull Stud Bolt: P50T-1
Motor:
Spindle Drive Motor: 30 HP
Mitsubishi M730 CNC
Automatic Lubrication System
Work Light
Leveling Bolts and Blocks
RS232 Interface
Coolant System
Spindle Oil Cooler
Four (4) Link Type Chip Conveyors
Automatic Power Off
Convection Heat Exchanger in Control Cabinet
Operation Manual & Electrical Drawings
Remote Manual Pulse Generator
Operation Finish Lamp
