2007 YCM TC-26 with LNS SERVO S3 Barfeed
Have one to sell?
ConditionUsed
1 available

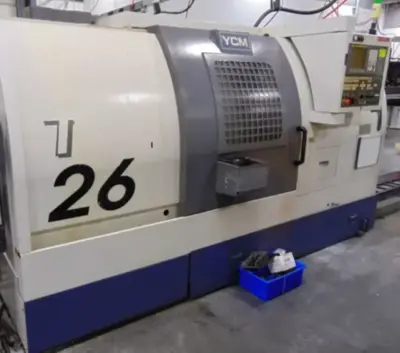

2007 YCM TC-26 CNC lathe with LNS SERVO S3 Barfeed. Specs: 500 mm swing, 647 mm machining length, 2-axis, 10" chuck, 4,000 RPM max. Features FANUC TXP-100e control, hydraulic chuck, parts catcher, 12-position turret, tailstock, and chip conveyor.
SWING OVER BED .................... 19.68"
SWING OVER CARRIAGE ............... 13.77"
MAX. TURNING DIA. ................. 17.7"
BAR WORK CAPACITY ................. 3.07"
MAX. TURNING LENGTH ............... 25.59"
DISTANCE BETWEEN CENTERS .......... 27.55"
CHUCK DIAMETER .................... 10"
SPINDLE NOSE ...................... A2-8
SPINDLE THROUGH HOLE .............. 3.46"
SPINDLE SPEED ..................... 4,000 RPM
X-AXIS TRAVEL ..................... 9.84"
Z-AXIS TRAVEL ..................... 27.55"
SPINDLE MOTOR ..................... 20/14.7HP
TURRET POSITIONS .................. 12
SHANK HEIGHT FOR SQUARE TOOL ...... 1"
SHANK DIAMETER FOR BORING ......... 1-1/2"
TAILSTOCK QUILL DIAMETER .......... 3.93"
TAILSTOCK TAPER ................... MT NO.5
TAILSTOCK QUILL STROKE ............ 4.72"
TAILSTOCK STROKE .................. 20.86"
- FANUC TXP-100e CNC CONTROL
- 10" MMK 3-JAW HYDRAULIC CHUCK
- PARTS CATCHER

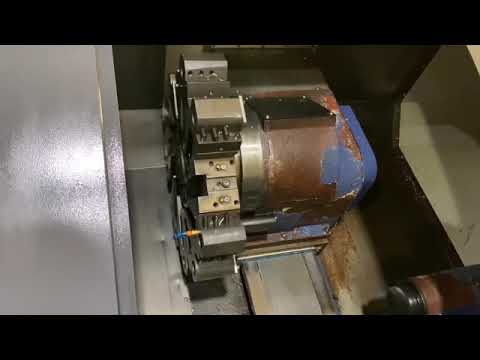

- 12 POSITION TURRET
- TAILSTOCK
- CHIP CONVEYOR
- LNS SERVO S3 BARFEED
