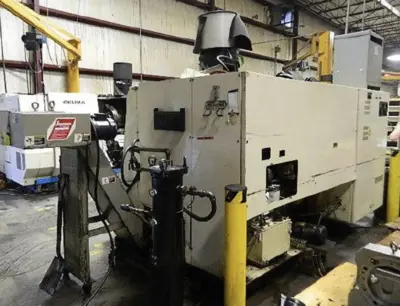

1997 OKUMA IMPACT LU-15M
Have one to sell?
ConditionUsed
1 available
Swing over bed 20.87"
Swing over carriage 14.96"
Swing over cross slide 12.99"
Maximum turning length 23.62"
X-axis travel (upper/lower) 10.24"/5.51"
Z-axis travel (upper/lower) 25.20"/24.21"
Headstock & main spdl nose JIS-A2-8
Spindle bore diameter 3.15"
Spindle speed range TO 4500 RPM
X-axis rapid traverse speed 590 IPM
Z-axis rapid traverse speed 787 IPM
Motor, horsepower 29.5 HP
Floor space req. 156" X 83" X 76"
Weight approximately 12000 LBS
8" 3-JAW CHUCK
OKUMA OSP7000L CNC CONTROL
LIVE MILLING CAPABILITIES
12 POSITION UPPER & 8 POSITION LOWER TURRET
NO CHIP CONVEYOR - COOLANT TANK
Tailstock
