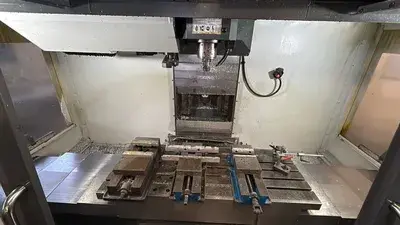

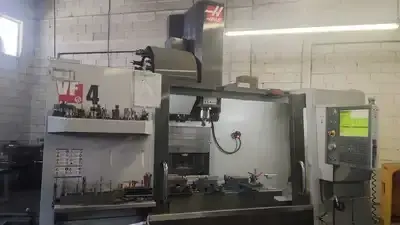

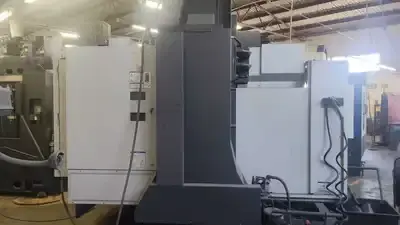

2013 Haas VF-4 Vertical Machining Center
Have one to sell?
ConditionUsed
1 available
This 2013 Haas VF-4 vertical machining center has 50" x 20" x 25" X/Y/Z travels over a 52" x 18" table rated for 3,500 lbs. It runs a 20 HP CAT-40 spindle up to 7,500 RPM with a 20-position ATC and a Haas CNC control.
Max Table Load: 3,500 lbs
Spindle Nose to Table: 4" to 29"
Rapid Traverse: 710 IPM
Max Cutting Feed Rate: 300 IPM
Approximate Dimensions: 118" x 110" x 117.5"
Approximate Weight: 13,500 lbs
Coolant System
This 2013 Haas VF-4 vertical machining center has 50" x 20" x 25" X/Y/Z travels over a 52" x 18" table rated for 3,500 lbs. It runs a 20 HP CAT-40 spindle up to 7,500 RPM with a 20-position ATC and a Haas CNC control.
The Haas VF-4, also searched as Haas VF4 or VF 4, is a 3-axis vertical machining center (VMC).
This 2013 machine has 4" to 29" from spindle nose to table, rapids of 710 IPM, and a max cutting feed rate of 300 IPM. It comes equipped with a coolant system, with approximate dimensions of 118" x 110" x 117.5" and an approximate weight of 13,500 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| X | 50" |
| Y | 20" |
| Z | 25" |
| Power | 20 hp |
| RPM | 7,500 RPM |
| # ATC | 20 |
| Taper | CAT-40 |
| Table-W | 18" |
| Table-L | 52" |
| # Axis | 3 |
| Control | CNC (HAAS) |
Max Table Load: 3,500 lbs
Spindle Nose to Table: 4" to 29"
Rapid Traverse: 710 IPM
Max Cutting Feed Rate: 300 IPM
Approximate Dimensions: 118" x 110" x 117.5"
Approximate Weight: 13,500 lbs
Coolant System
