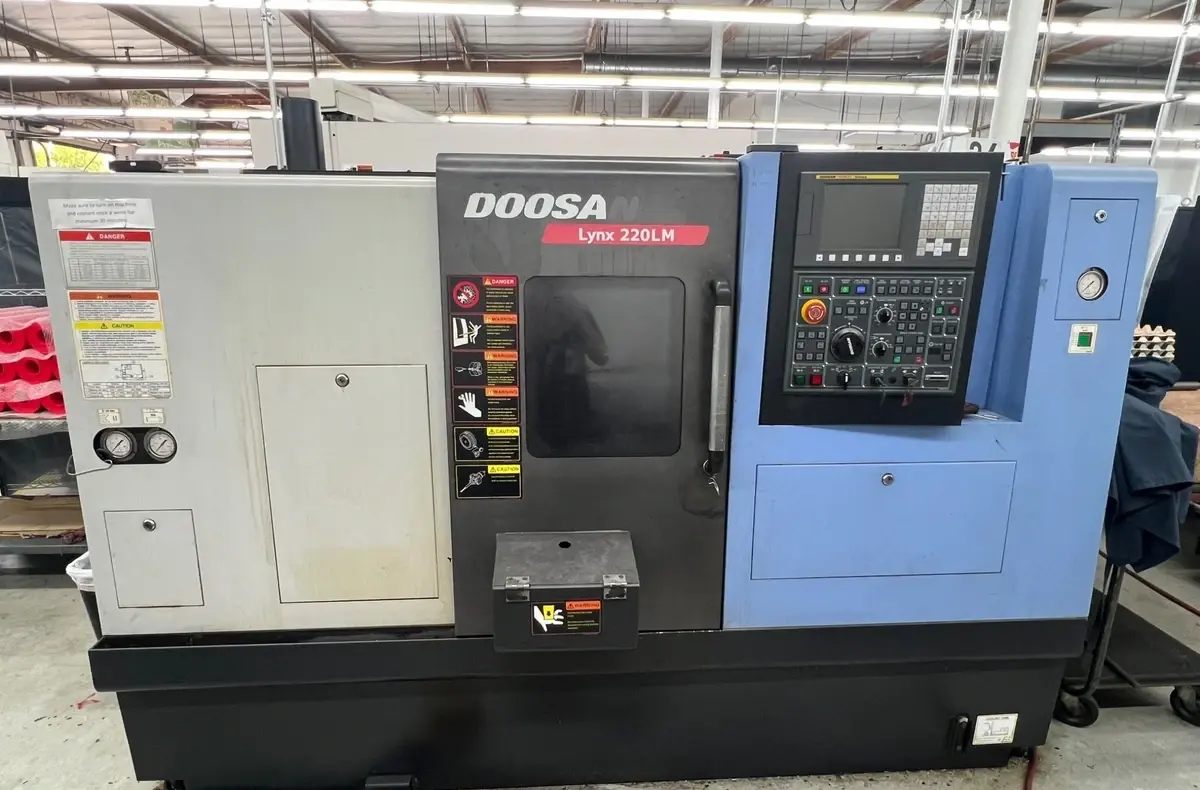

2010 Doosan Lynx 220LMA CNC Lathe with Live Tooling
Have one to sell?
ConditionUsed
1 available

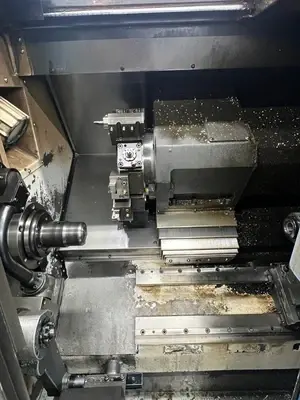

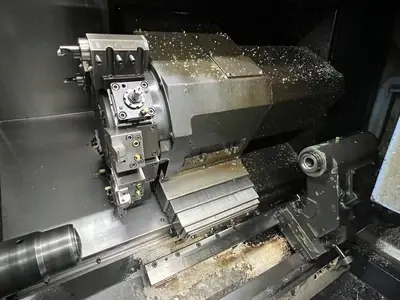

This 2010 Doosan Lynx 220LMA CNC lathe has live milling on a 24-station turret, an LNS Eco Load-L bar feeder, a tool presetter, and a hydraulic tailstock with programmable quill. It runs a 6.5" Kitagawa hydraulic chuck with 2" bar capacity and a 20 HP spindle up to 6,000 RPM, with a 9.84" max turning diameter over a 20.1" turning length.
Swing Over Carriage: 11.4"
X-Axis Travel: 17.7"
Z-Axis Travel: 13"
C-Axis Indexing: 0.001°
Rapid Traverse X-Axis: 1,181 IPM
Rapid Traverse Z-Axis: 1,417 IPM
Spindle Bore: 2.4"
Spindle Nose: A2-6
Live Tooling Motor: 5 HP
Live Tool Speed: 6,000 RPM

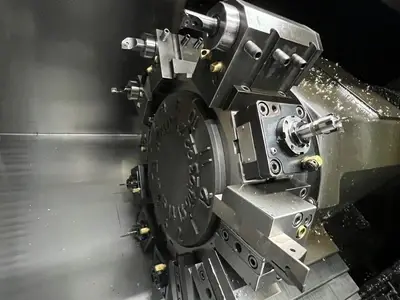

Turret Stations: 24
Turret Index Time: 0.15 Sec
Tailstock Quill Diameter: 3.93"
Tailstock Quill Stroke: 4.72"
Tailstock Taper: MT-4
Power Requirement: AC 200/220V, 3 Ph, 50/60 Hz, 68 Amps
Approximate Dimensions: 105" x 65" x 65"
Approximate Weight: 8,820 lbs

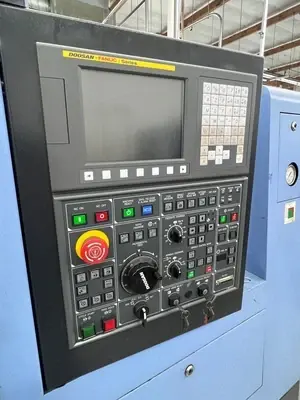

Fanuc i Series CNC Control with Color LCD
Tool Presetter
Hydraulic Tailstock with Programmable Quill
LNS Eco Load-L Bar Feeder

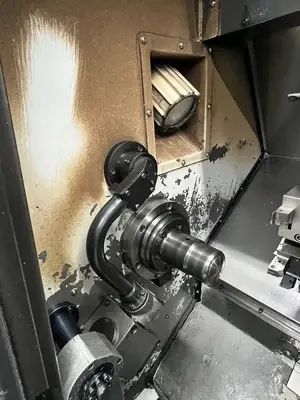

Kitagawa 3-Jaw Hydraulic Chuck
2-Step Gear Spindle
PCMCIA Card Slot
Coolant System with Chip Pan and Skimmer
Automatic Lubrication System
Foot Pedal Chuck Control
This 2010 Doosan Lynx 220LMA CNC lathe has live milling on a 24-station turret, an LNS Eco Load-L bar feeder, a tool presetter, and a hydraulic tailstock with programmable quill. It runs a 6.5" Kitagawa hydraulic chuck with 2" bar capacity and a 20 HP spindle up to 6,000 RPM, with a 9.84" max turning diameter over a 20.1" turning length.
The Doosan Lynx 220LMA, also searched as Lynx 220 LMA, Lynx 220LM, Lynx 220, or DN Solutions Lynx 220LMA, is a CNC turning center with live tooling and a C-axis.
This 2010 machine has 17.7" of X-axis travel and 13" of Z-axis travel, with rapids of 1,181 IPM (X) and 1,417 IPM (Z), a 2.4" spindle bore, an A2-6 spindle nose, and a 5 HP live tooling motor up to 6,000 RPM. It also comes with a 2-step gear spindle, 0.15 second turret index, MT-4 tailstock taper, coolant system with chip pan and skimmer, automatic lubrication, PCMCIA card slot, and foot pedal chuck control, with approximate dimensions of 105" x 65" x 65" and an approximate weight of 8,820 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Swing | 23.2" |
| Machining Length | 20.1" |
| # Axis | 3 |
| Chuck Size | 6.5" |
| Bar Capacity | 2" |
| Power | 20 hp |
| Max RPM | 6,000 RPM |
| Turning Dia | 9.84" |
| Tailstock | Yes |
| Live Tooling | Yes |
| Sub Spindle | No |
| Control | CNC (Fanuc) |
Swing Over Carriage: 11.4"
X-Axis Travel: 17.7"
Z-Axis Travel: 13"
C-Axis Indexing: 0.001°
Rapid Traverse X-Axis: 1,181 IPM
Rapid Traverse Z-Axis: 1,417 IPM
Spindle Bore: 2.4"
Spindle Nose: A2-6
Live Tooling Motor: 5 HP
Live Tool Speed: 6,000 RPM
Turret Stations: 24
Turret Index Time: 0.15 Sec
Tailstock Quill Diameter: 3.93"
Tailstock Quill Stroke: 4.72"
Tailstock Taper: MT-4
Power Requirement: AC 200/220V, 3 Ph, 50/60 Hz, 68 Amps
Approximate Dimensions: 105" x 65" x 65"
Approximate Weight: 8,820 lbs
Fanuc i Series CNC Control with Color LCD
Tool Presetter
Hydraulic Tailstock with Programmable Quill
LNS Eco Load-L Bar Feeder
Kitagawa 3-Jaw Hydraulic Chuck
2-Step Gear Spindle
PCMCIA Card Slot
Coolant System with Chip Pan and Skimmer
Automatic Lubrication System
Foot Pedal Chuck Control
