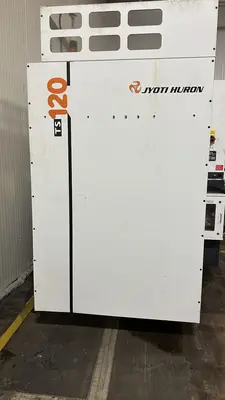

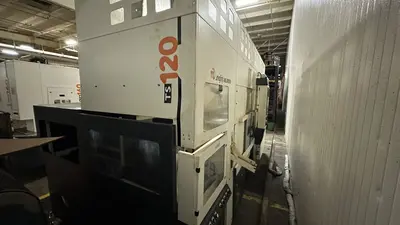

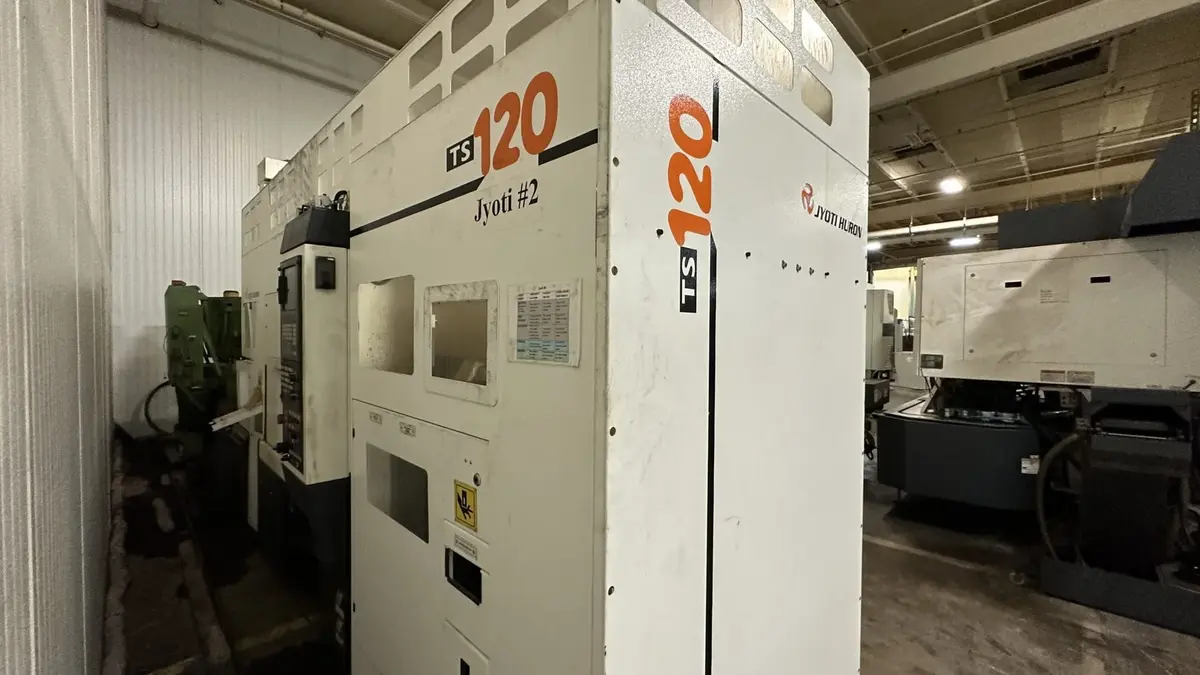

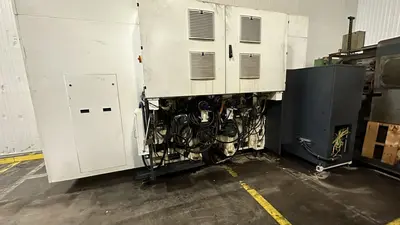

2016 Jyoti TS 120 Twin Spindle CNC Lathe with Gantry Loader
Have one to sell?
ConditionUsed
1 available
This 2016 Jyoti TS 120 twin spindle, twin turret CNC chucker lathe comes with an automated gantry robot loader/unloader that handles workpieces up to 4.7" x 3.1". It has two spindles with a 50 to 4,500 RPM speed range, a 6.5" chuck size, an A2-5 spindle nose, and two turrets with 16 stations total (8 + 8).
X-Axis Travel: 3"
Z-Axis Travel: 5.7"
Rapid Feed (X and Z Axis): 944.88 IPM
Number of Spindles: 2
Spindle Nose: A2-5
Number of Turrets: 2 (16 Stations, 8 + 8)
Loader Workpiece Capacity: 4.7" x 3.1"
Loader Max Part Weight: 6.61 lbs (2 Parts)
Loader X (Left/Right) Axis Stroke: 72.8"
Loader X Max Speed: 4,724.41 IPM
Loader Y (Up/Down) Axis Stroke: 22"
Loader Y Max Speed: 3,543.31 IPM
Loader Z (Front/Rear) Axis Stroke: 6"
Loader Z Max Speed: 1,968.5 IPM
Standard Loading Time: 7 Sec
Approximate Weight: 10,000 lbs
Approximate Dimensions: 85" x 75" x 95" (L x W x H)

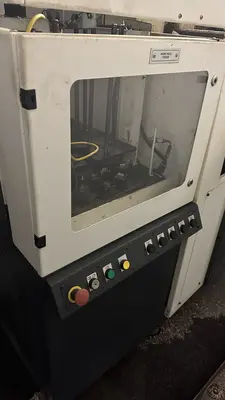

Automated Gantry Robot Loader/Unloader
This 2016 Jyoti TS 120 twin spindle, twin turret CNC chucker lathe comes with an automated gantry robot loader/unloader that handles workpieces up to 4.7" x 3.1". It has two spindles with a 50 to 4,500 RPM speed range, a 6.5" chuck size, an A2-5 spindle nose, and two turrets with 16 stations total (8 + 8).
The Jyoti TS 120, also searched as Jyoti TS120, TS-120, or Jyoti Huron TS 120, is a twin spindle, twin turret CNC chucker lathe (turning center) with an automated gantry loader.
This 2016 machine has 3" of X-axis travel and 5.7" of Z-axis travel, with rapids of 944.88 IPM on both axes. The gantry loader has strokes of 72.8" (X), 22" (Y), and 6" (Z), carries up to 6.61 lbs (2 parts), and has a standard loading time of 7 seconds, with an approximate weight of 10,000 lbs and approximate dimensions of 85" x 75" x 95".
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Chuck Size | 6.5" |
| Max RPM | 4,500 RPM |
X-Axis Travel: 3"
Z-Axis Travel: 5.7"
Rapid Feed (X and Z Axis): 944.88 IPM
Number of Spindles: 2
Spindle Nose: A2-5
Number of Turrets: 2 (16 Stations, 8 + 8)
Loader Workpiece Capacity: 4.7" x 3.1"
Loader Max Part Weight: 6.61 lbs (2 Parts)
Loader X (Left/Right) Axis Stroke: 72.8"
Loader X Max Speed: 4,724.41 IPM
Loader Y (Up/Down) Axis Stroke: 22"
Loader Y Max Speed: 3,543.31 IPM
Loader Z (Front/Rear) Axis Stroke: 6"
Loader Z Max Speed: 1,968.5 IPM
Standard Loading Time: 7 Sec
Approximate Weight: 10,000 lbs
Approximate Dimensions: 85" x 75" x 95" (L x W x H)
Automated Gantry Robot Loader/Unloader
