2013 Haas DT-1 5-Axis Vertical Machining Center with Probing
Have one to sell?
ConditionUsed
1 available

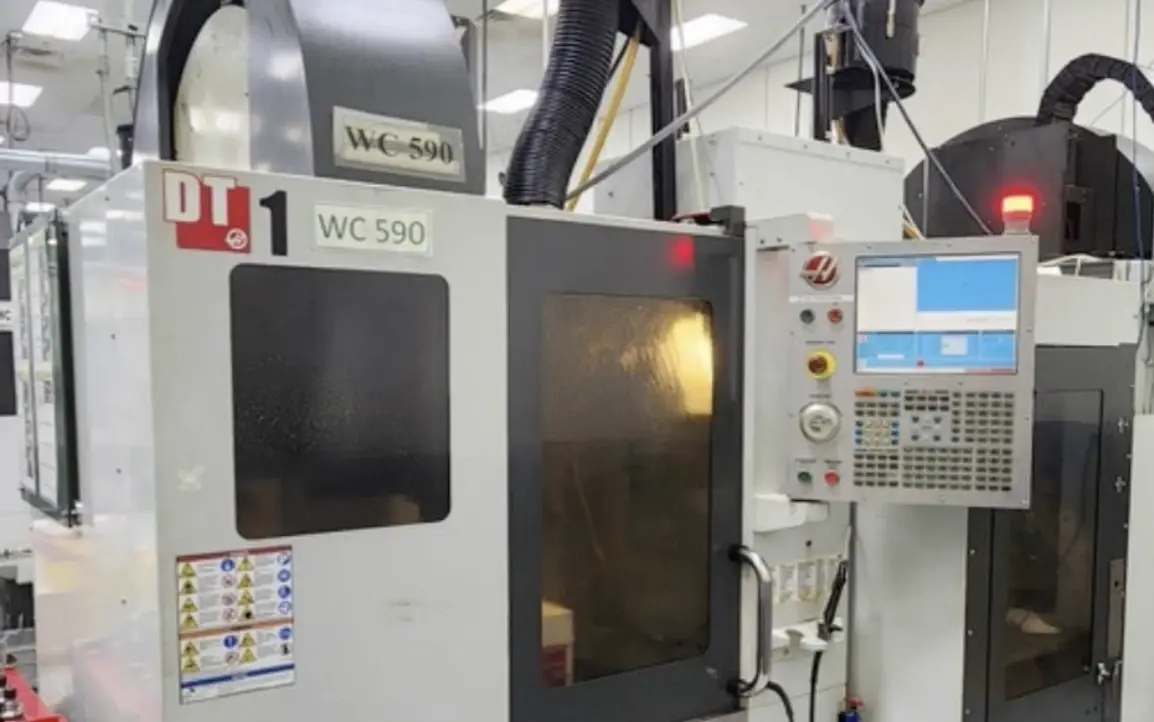

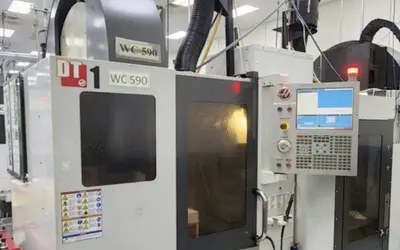

This 2013 Haas DT-1 5-axis vertical machining center comes with a Tsudakoma dual-axis (4th and 5th) rotary table and the Haas Intuitive Probing package for part and tool probing. It has 20" x 16" x 15.5" X/Y/Z travels, a 15 HP BT-30 spindle with a max speed of 12,000 RPM, a 20-tool ATC, and coolant through the spindle.

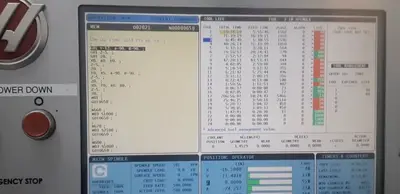

Haas 64-Bit CNC Control with 15" LCD Screen
USB and RS-232C Port Interface for DNC Operation
Tsudakoma Dual (4th and 5th) Axis T Rotary Table
Haas Intuitive Probing Package (Part and Tool Probing)
Coolant Through the Spindle (Standard Pressure)
Programmable Coolant Nozzle
Rigid Tapping (Synchronous / Solid Tapping)
Dual Chip Augers with Rear Exit Chip Chutes
Standard Coolant System with Tank and Pump
Coolant Float
Fully Enclosed Guards
This 2013 Haas DT-1 5-axis vertical machining center comes with a Tsudakoma dual-axis (4th and 5th) rotary table and the Haas Intuitive Probing package for part and tool probing. It has 20" x 16" x 15.5" X/Y/Z travels, a 15 HP BT-30 spindle with a max speed of 12,000 RPM, a 20-tool ATC, and coolant through the spindle.
The Haas DT-1, also searched as Haas DT1 or DT 1, is a 5-axis drill/tap machining center (VMC) with a dual-axis rotary table.
This 2013 machine also comes equipped with rigid tapping, a programmable coolant nozzle, dual chip augers with rear exit chip chutes, a coolant system with tank, pump, and float, fully enclosed guards, and USB and RS-232C ports for DNC operation, all run from a Haas 64-bit control with a 15" LCD screen.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Control | CNC (HAAS) |
Haas 64-Bit CNC Control with 15" LCD Screen
USB and RS-232C Port Interface for DNC Operation
Tsudakoma Dual (4th and 5th) Axis T Rotary Table
Haas Intuitive Probing Package (Part and Tool Probing)
Coolant Through the Spindle (Standard Pressure)
Programmable Coolant Nozzle
Rigid Tapping (Synchronous / Solid Tapping)
Dual Chip Augers with Rear Exit Chip Chutes
Standard Coolant System with Tank and Pump
Coolant Float
Fully Enclosed Guards
