2024 LK Machinery VM3 Vertical Machining Center
Have one to sell?
ConditionUsed
1 available

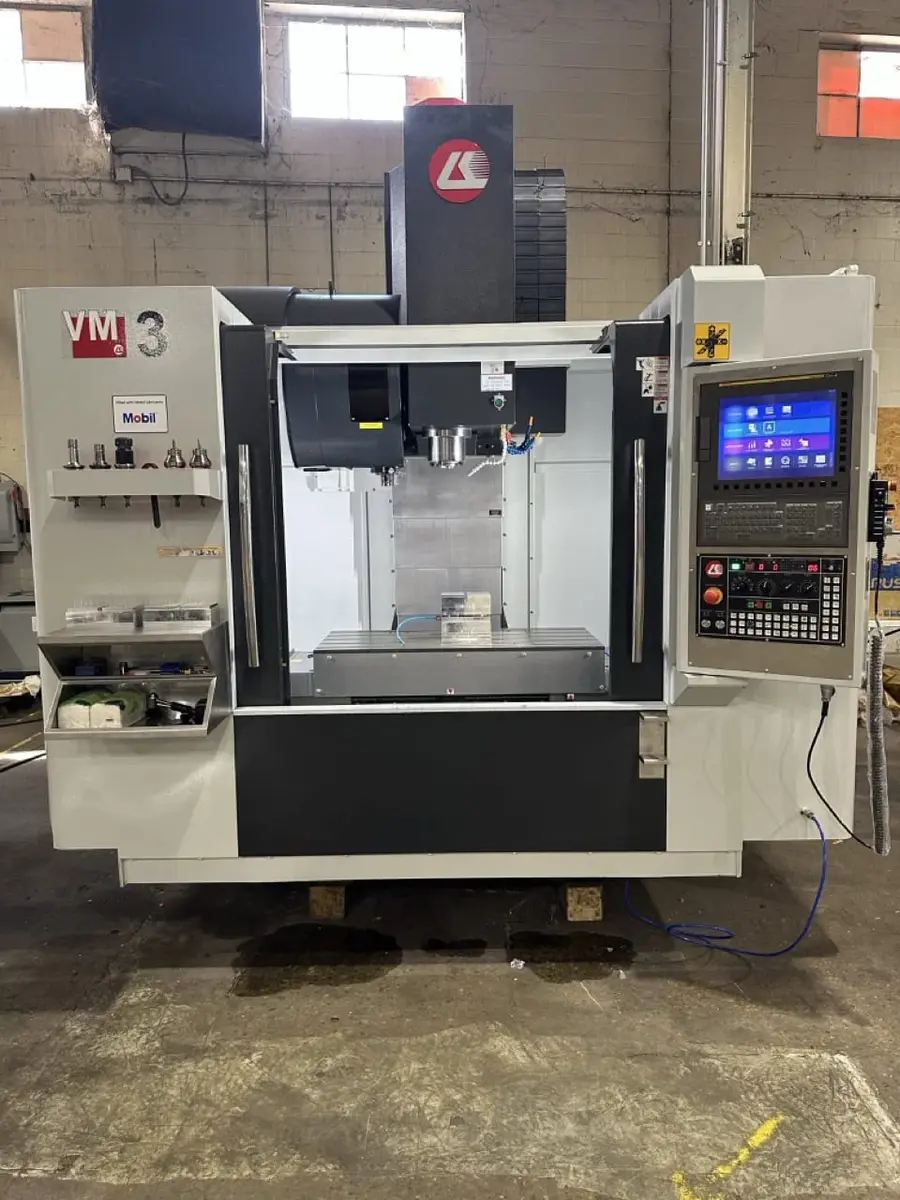

This 2024 LK Machinery VM3 vertical machining center was never put into production, and runs a 12,000 RPM CAT-40 direct drive spindle with a 24-tool arm-type changer and a Fanuc 0i-MF Plus control. It has 39.37" x 19.69" x 24.02" of travel over a 44.09" x 19.69" table rated for 2,204.62 lbs.
Max Table Load: 2,204.62 lbs
Spindle Center to Table Surface: 3.94" to 27.95"
T-Slots: 5 x 3.94" Pitch
T-Slot Size: 0.71"
Rapid Traverse X/Y/Z: 1,889.76 IPM
Cutting Feedrate: 39.37 to 787.4 IPM

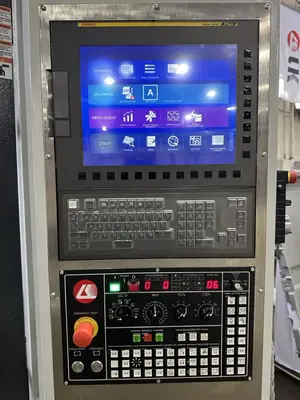

Fanuc 0i-MF Plus Control
15" Touchscreen LCD
Direct Drive Spindle (DDS Type)

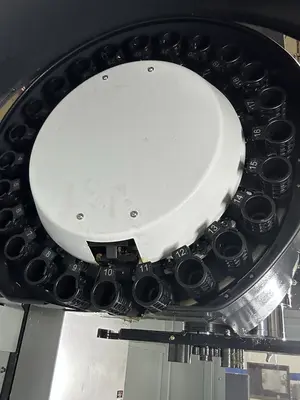

Arm Type Tool Changer
Convection Heat Exchanger in Control Box
RJ-45 Interface
Automatic Power Off
Operation Finish Lamp
Manual Pulse Generator (MPG)
Automatic Lubrication System
Ball Type Linear Guideways
Rear Side Chip Removal
This 2024 LK Machinery VM3 vertical machining center was never put into production, and runs a 12,000 RPM CAT-40 direct drive spindle with a 24-tool arm-type changer and a Fanuc 0i-MF Plus control. It has 39.37" x 19.69" x 24.02" of travel over a 44.09" x 19.69" table rated for 2,204.62 lbs.
The LK Machinery VM3, also searched as LK VM3, LK VM-3, or VM 3, is a 3-axis vertical machining center (VMC).

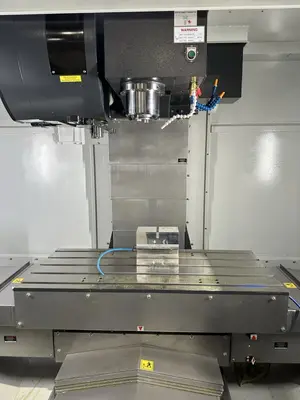

This 2024 machine has 1,889.76 IPM rapids on X, Y, and Z, 3.94" to 27.95" from spindle center to table, and a table with five 0.71" T-slots. It comes equipped with a 15" touchscreen, linear guideways, automatic lubrication, and rear side chip removal.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| X | 39.37" |
| Y | 19.69" |
| Z | 24.02" |
| RPM | 12,000 RPM |
| # ATC | 24 |
| Taper | CAT-40 |
| Table-W | 19.69" |
| Table-L | 44.09" |
| # Axis | 3 |
| Control | CNC (Fanuc) |
Max Table Load: 2,204.62 lbs
Spindle Center to Table Surface: 3.94" to 27.95"
T-Slots: 5 x 3.94" Pitch
T-Slot Size: 0.71"
Rapid Traverse X/Y/Z: 1,889.76 IPM
Cutting Feedrate: 39.37 to 787.4 IPM
Fanuc 0i-MF Plus Control
15" Touchscreen LCD
Direct Drive Spindle (DDS Type)
Arm Type Tool Changer
Convection Heat Exchanger in Control Box
RJ-45 Interface
Automatic Power Off
Operation Finish Lamp
Manual Pulse Generator (MPG)
Automatic Lubrication System
Ball Type Linear Guideways
Rear Side Chip Removal
