2007 Traub TNX 65/42 Multi-Axis CNC Lathe with 4 Turrets
Have one to sell?
ConditionUsed
1 available
This 2007 Traub TNX 65/42 multi-axis CNC lathe has 15 axes, four 10-station X-Y-Z turrets with live tooling, and a sub spindle, fed by an FMB Turbo 5-55 magazine bar feeder. It handles 2.5" bar through a 32.2 HP main spindle running up to 5,000 RPM, with 25.6" of max turning length and a Traub TX8i-S control.

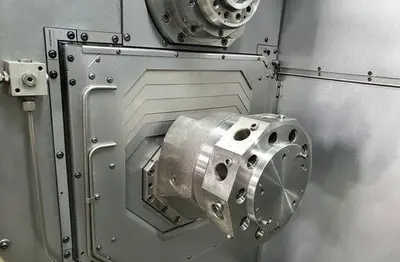

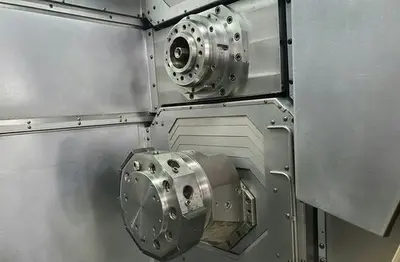

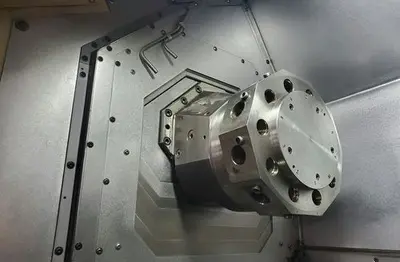

Turrets: 4 X-Y-Z Turrets, 10 Positions Each
Main and Sub Spindle Through Hole: 2.56"
Approximate Weight: 22,000 lbs

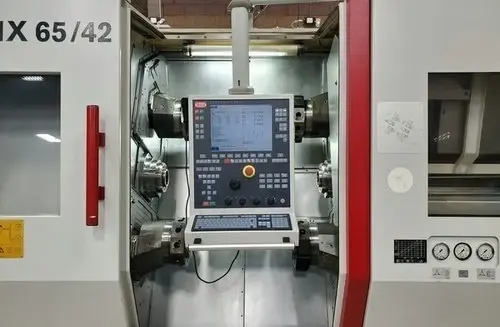

Traub TX8i-S Control (Mitsubishi)
FMB Turbo 5-55 Magazine Bar Feeder (New in 2010)
Hainbuch Main Spindle Collet Chuck
Röhm Sub Spindle 2-Jaw Chuck
Sub Spindle Coolant Flush
Servo Driven Gantry Receiver
Hydraulic Swivel with Pneumatic Finished Part and Bar Remnant Gripper
Finished Part Conveyor Belt
Resy Paper Band Coolant Filter
Knoll Coolant Tank

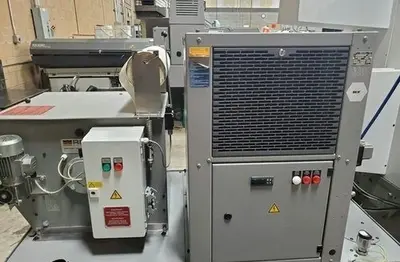

BKW Refrigerated Coolant Temperature Control
20 Bar High Pressure and 8 Bar Low Pressure Coolant Pumps
Knoll Chip Conveyor
Machine Parameter Backup on USB Stick
Recent Service
Reconditioned
This 2007 Traub TNX 65/42 multi-axis CNC lathe has 15 axes, four 10-station X-Y-Z turrets with live tooling, and a sub spindle, fed by an FMB Turbo 5-55 magazine bar feeder. It handles 2.5" bar through a 32.2 HP main spindle running up to 5,000 RPM, with 25.6" of max turning length and a Traub TX8i-S control.
The Traub TNX 65/42, also searched as Traub TNX65/42, TNX 65, or TNX65, is a multi-axis CNC turning center with twin spindles, four turrets, and live tooling (multi-turret, twin spindle lathe).
This 2007 machine has a 2.56" through hole on both the main and sub spindle, a Hainbuch collet chuck on the main spindle, a Röhm 2-jaw chuck on the sub spindle, and a servo driven gantry receiver with a hydraulic swivel and part gripper. It also comes equipped with a finished part conveyor, Resy paper band coolant filter, Knoll coolant tank and chip conveyor, BKW refrigerated coolant temperature control, and 20 bar and 8 bar coolant pumps, with an approximate weight of 22,000 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Machining Length | 25.6" |
| Chuck Size | 8.69" |
| Bar Capacity | 2.5" |
| Power | 32.2 hp |
| Max RPM | 5,000 RPM |
| Tailstock | 'No' |
| Live Tooling | 'Yes' |
| Sub Spindle | 'Yes' |
| Control | CNC (Mitsubishi) |
Turrets: 4 X-Y-Z Turrets, 10 Positions Each
Main and Sub Spindle Through Hole: 2.56"
Approximate Weight: 22,000 lbs
Traub TX8i-S Control (Mitsubishi)
FMB Turbo 5-55 Magazine Bar Feeder (New in 2010)
Hainbuch Main Spindle Collet Chuck
Röhm Sub Spindle 2-Jaw Chuck
Sub Spindle Coolant Flush
Servo Driven Gantry Receiver
Hydraulic Swivel with Pneumatic Finished Part and Bar Remnant Gripper
Finished Part Conveyor Belt
Resy Paper Band Coolant Filter
Knoll Coolant Tank
BKW Refrigerated Coolant Temperature Control
20 Bar High Pressure and 8 Bar Low Pressure Coolant Pumps
Knoll Chip Conveyor
Machine Parameter Backup on USB Stick
Recent Service
Reconditioned
