2023 Star SR-32JIII Type A Swiss CNC Lathe with Bar Feeder
Have one to sell?
ConditionUsed
1 available

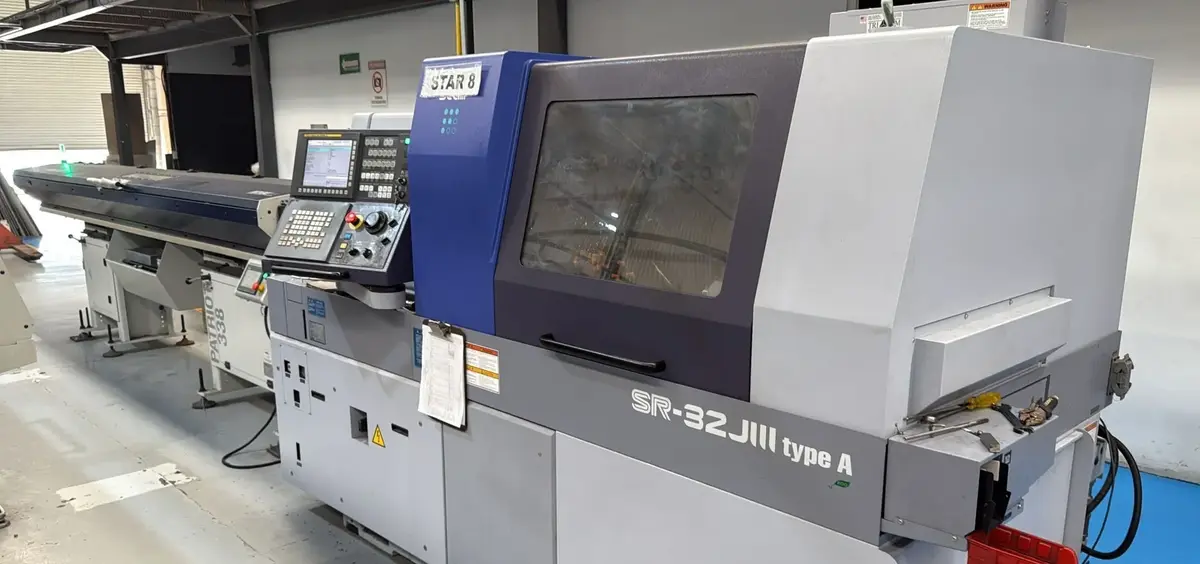

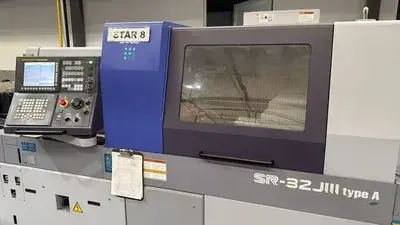

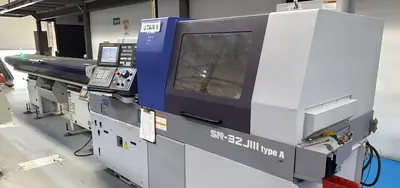

This 2023 Star SR-32JIII Type A Swiss-type CNC lathe has 7 axes, a 1.25" bar capacity, and an Edge Patriot 338 12' magazine bar feeder. Its 10 HP main spindle and the sub spindle both run up to 7,000 RPM, with 5 cross driven tools at 5,000 RPM and a parts conveyor.
Max Machining Diameter: 1.26"
Z Axis Travel: 12.2"
Rapid Rate X Axis: 944 IPM
Rapid Rate Z Axis: 944 IPM
Axis Configuration: Main Spindle Z1/C1, Tool Post X1/Y1, Sub Spindle X2/Z2/C2
Turning Tools: 6 (0.63")
Front Drilling Tools: 4 (4-Spindle Sleeve Holder, 1.26" Sleeves)
Cross Driven Tools: 5 (ER16), 5,000 RPM
Sub Spindle Max Chucking Diameter: 1.26"
Sub Spindle Power: 4.96 HP
Sub Spindle Max Speed: 7,000 RPM
Back Working Drilling Tools: 4 (0.87" Sleeves)
Back Working Driven Tools: 4 (ER16)
Edge Patriot 338 Magazine Bar Feeder, Full 12'
Parts Conveyor
This 2023 Star SR-32JIII Type A Swiss-type CNC lathe has 7 axes, a 1.25" bar capacity, and an Edge Patriot 338 12' magazine bar feeder. Its 10 HP main spindle and the sub spindle both run up to 7,000 RPM, with 5 cross driven tools at 5,000 RPM and a parts conveyor.
The Star SR-32JIII Type A, also searched as Star SR32JIII A, SR-32JIIIA, SR-32J III, or SR32J, is a sliding headstock Swiss-type CNC lathe (Swiss screw machine) with a sub spindle.
This 2023 machine has 12.2" of Z-axis travel and 944 IPM rapids on X and Z, with 6 turning tools and 4 drilling tools on the front side, plus 4 back working drilling tools and 4 back working driven tools on the sub spindle side.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Spindle Hole Dia | 1.25" |
| Power | 10 hp |
| RPM | 7,000 RPM |
| # Axis | 7 |

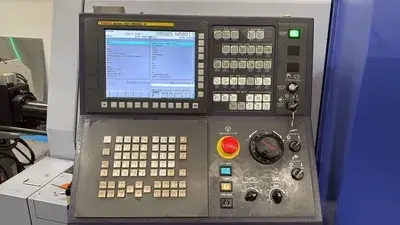

| Control | CNC (Fanuc) |
Max Machining Diameter: 1.26"
Z Axis Travel: 12.2"
Rapid Rate X Axis: 944 IPM
Rapid Rate Z Axis: 944 IPM
Axis Configuration: Main Spindle Z1/C1, Tool Post X1/Y1, Sub Spindle X2/Z2/C2
Turning Tools: 6 (0.63")
Front Drilling Tools: 4 (4-Spindle Sleeve Holder, 1.26" Sleeves)
Cross Driven Tools: 5 (ER16), 5,000 RPM
Sub Spindle Max Chucking Diameter: 1.26"
Sub Spindle Power: 4.96 HP
Sub Spindle Max Speed: 7,000 RPM
Back Working Drilling Tools: 4 (0.87" Sleeves)
Back Working Driven Tools: 4 (ER16)
Edge Patriot 338 Magazine Bar Feeder, Full 12'
Parts Conveyor
