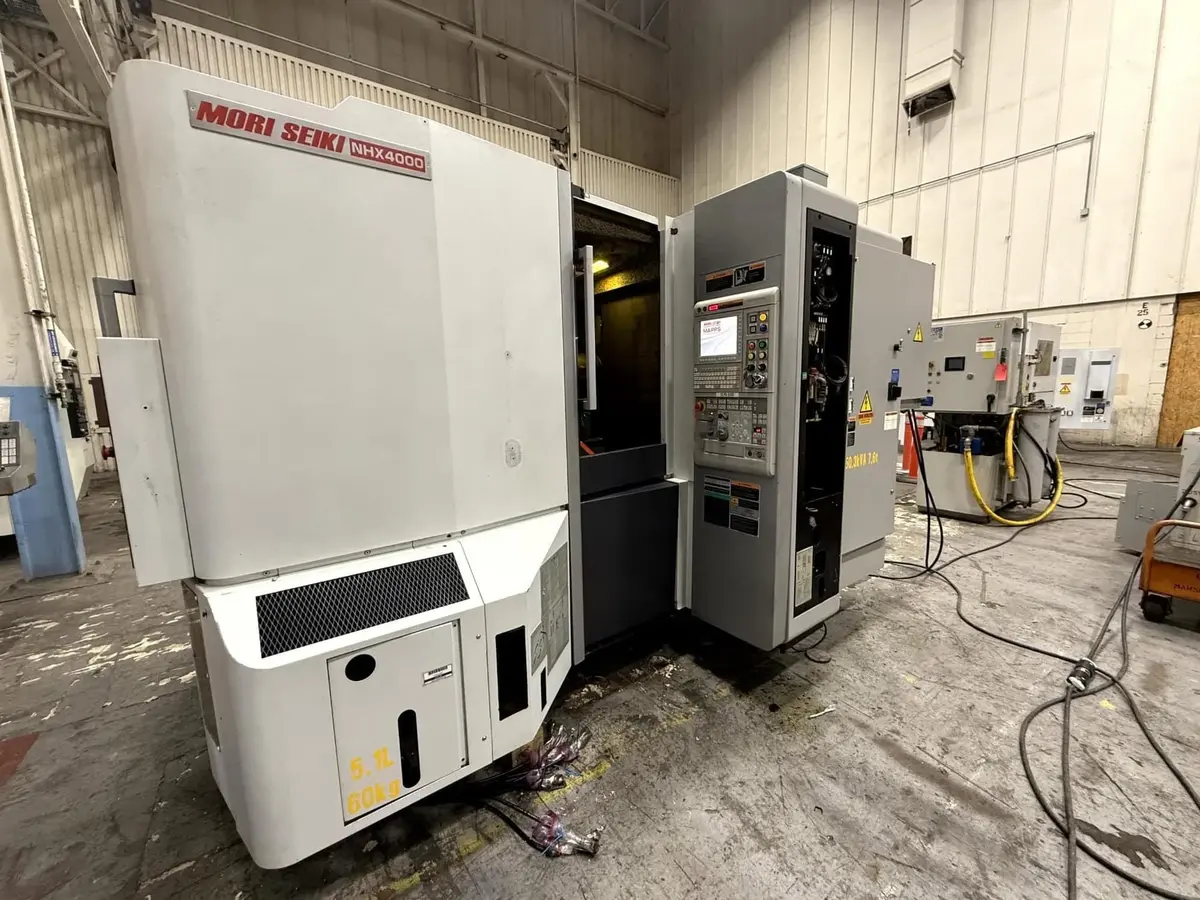

2012 Mori Seiki NHX4000 Horizontal Machining Center with ChipBlaster
Have one to sell?
ConditionUsed
1 available

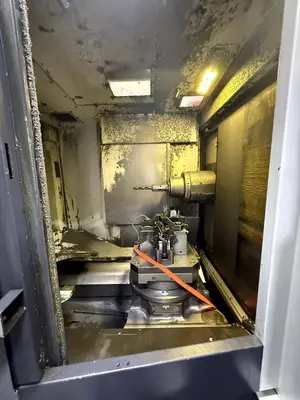

This 2012 Mori Seiki NHX4000 horizontal machining center comes with a ChipBlaster coolant filtration system, chip conveyor, and tooling, plus two 15.7" pallets with 0.001-degree indexing. It has 22" x 22" x 26" XYZ travels and a 12,000 RPM HSK-A63 spindle rated at 20/15 HP, with a 40-tool ATC and 2,362 IPM rapids.
Number of Pallets: 2
Pallet Index: 0.001 Degree
Spindle Center to Table Top: 2.4" to 24.4"
Spindle Nose to Table Center: 2.8" to 28.7"
Rapid Traverse: 2,362 IPM
Tool Change Time (T-T / C-C): 0.9 / 2.8 Seconds
Pallet Change Time: 8 Seconds
Pallet Load Capacity: 880 lbs
Max Workpiece Diameter / Height: 24.8" / 34.6"
Max Tool Diameter: 2.7" / 6.6"
Max Tool Length: 17.7"
Max Tool Weight: 17.6 lbs
Approximate Dimensions: 165.9" x 107.1" x 98.9"
Approximate Weight: 16,720 lbs
Mori Seiki M730BM Control

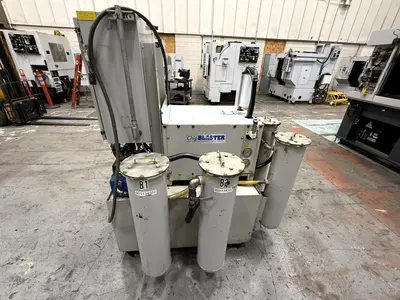

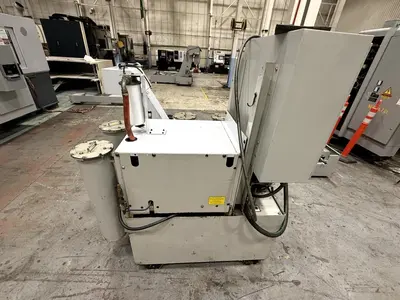

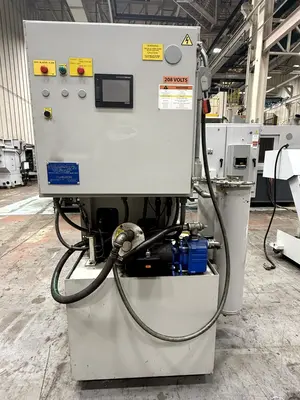

ChipBlaster Coolant Filtration System

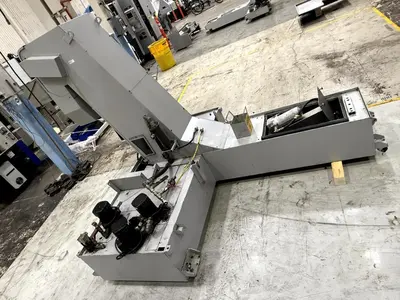

Chip Conveyor
Tooling
This 2012 Mori Seiki NHX4000 horizontal machining center comes with a ChipBlaster coolant filtration system, chip conveyor, and tooling, plus two 15.7" pallets with 0.001-degree indexing. It has 22" x 22" x 26" XYZ travels and a 12,000 RPM HSK-A63 spindle rated at 20/15 HP, with a 40-tool ATC and 2,362 IPM rapids.
The Mori Seiki NHX4000, also searched as NHX 4000, NHX-4000, or DMG Mori NHX4000, is a 400 mm pallet horizontal machining center (HMC) with a 2-pallet changer.
It has a pallet load capacity of 880 lbs and a max workpiece size of 24.8" in diameter by 34.6" high, with tool change times of 0.9 seconds tool to tool and 2.8 seconds chip to chip, and an 8-second pallet change. Approximate dimensions are 165.9" x 107.1" x 98.9", with an approximate weight of 16,720 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| X | 22" |
| Y | 22" |
| Z | 26" |
| Power | 40 hp |
| RPM | 12,000 RPM |
| # ATC | 40 |
| Taper | HSK-A63 |
| Pallet-W | 15.7" |
| Pallet-L | 15.7" |
| # Axis | 4 |
| Control | CNC (Mitsubishi) |
Number of Pallets: 2
Pallet Index: 0.001 Degree
Spindle Center to Table Top: 2.4" to 24.4"
Spindle Nose to Table Center: 2.8" to 28.7"
Rapid Traverse: 2,362 IPM
Tool Change Time (T-T / C-C): 0.9 / 2.8 Seconds
Pallet Change Time: 8 Seconds
Pallet Load Capacity: 880 lbs
Max Workpiece Diameter / Height: 24.8" / 34.6"
Max Tool Diameter: 2.7" / 6.6"
Max Tool Length: 17.7"
Max Tool Weight: 17.6 lbs
Approximate Dimensions: 165.9" x 107.1" x 98.9"
Approximate Weight: 16,720 lbs
Mori Seiki M730BM Control
ChipBlaster Coolant Filtration System
Chip Conveyor
Tooling
