1998 Daewoo Puma 350B CNC Lathe with 18" Chuck
Have one to sell?
ConditionUsed
1 available

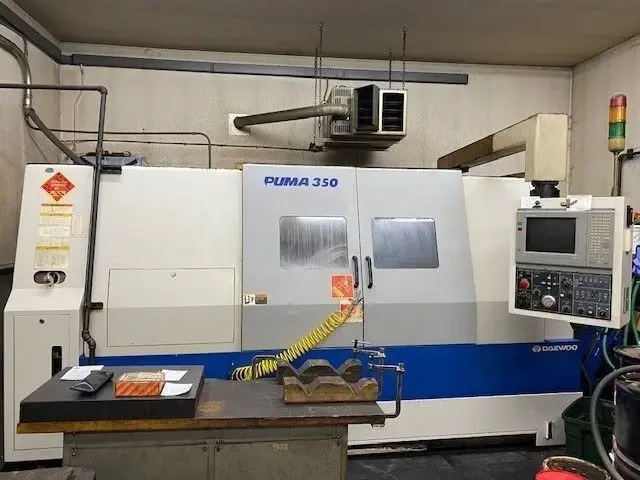

Running an 18" chuck and a programmable tailstock, this 1998 Daewoo Puma 350B CNC lathe has a Mitsubishi control, 10 station turret, and 2-speed gearbox. It offers 27.55" of swing, a 21.65" max turning diameter, 41.4" of machining length, and 4.5" of bar capacity, with a 40 HP spindle reaching 2,000 RPM and up to 1,531 ft-lbs of torque.
X-Axis Travel: 14.3"
Z-Axis Travel: 43.5"
Rapid Rate X-Axis: 630 IPM
Rapid Rate Z-Axis: 630 IPM
Swing Over Carriage: 18.9"
Distance Between Centers: 44.1"
Spindle Nose: A2-11
Spindle Bore: 5.20"
Draw Tube ID: 4.62"
Max Spindle Torque: 1,531 ft-lbs
Max X-Axis Thrust: 5,900 lbs
Max Z-Axis Thrust: 6,800 lbs
Turret: 10 Station
Slant Bed Angle: 45 Degrees
Tailstock Quill Diameter: 4.7"
Tailstock Quill Stroke: 4.7" (Programmable)
Tailstock Taper: MT #6
Approximate Dimensions: 174" x 77" x 73"
Approximate Weight: 16,500 lbs
Chip Conveyor
2-Speed Gearbox
Running an 18" chuck and a programmable tailstock, this 1998 Daewoo Puma 350B CNC lathe has a Mitsubishi control, 10 station turret, and 2-speed gearbox. It offers 27.55" of swing, a 21.65" max turning diameter, 41.4" of machining length, and 4.5" of bar capacity, with a 40 HP spindle reaching 2,000 RPM and up to 1,531 ft-lbs of torque.
X-Axis Travel: 14.3"
Z-Axis Travel: 43.5"
Rapid Rate X-Axis: 630 IPM
Rapid Rate Z-Axis: 630 IPM
Swing Over Carriage: 18.9"
Distance Between Centers: 44.1"
Spindle Nose: A2-11
Spindle Bore: 5.20"
Draw Tube ID: 4.62"
Max Spindle Torque: 1,531 ft-lbs
Max X-Axis Thrust: 5,900 lbs
Max Z-Axis Thrust: 6,800 lbs
Turret: 10 Station
Slant Bed Angle: 45 Degrees
Tailstock Quill Diameter: 4.7"
Tailstock Quill Stroke: 4.7" (Programmable)
Tailstock Taper: MT #6
Approximate Dimensions: 174" x 77" x 73"
Approximate Weight: 16,500 lbs
Chip Conveyor
2-Speed Gearbox
