2022 Okuma Multus B250II-1SW/750 5-Axis CNC Lathe with Robot
Have one to sell?
ConditionUsed
1 available

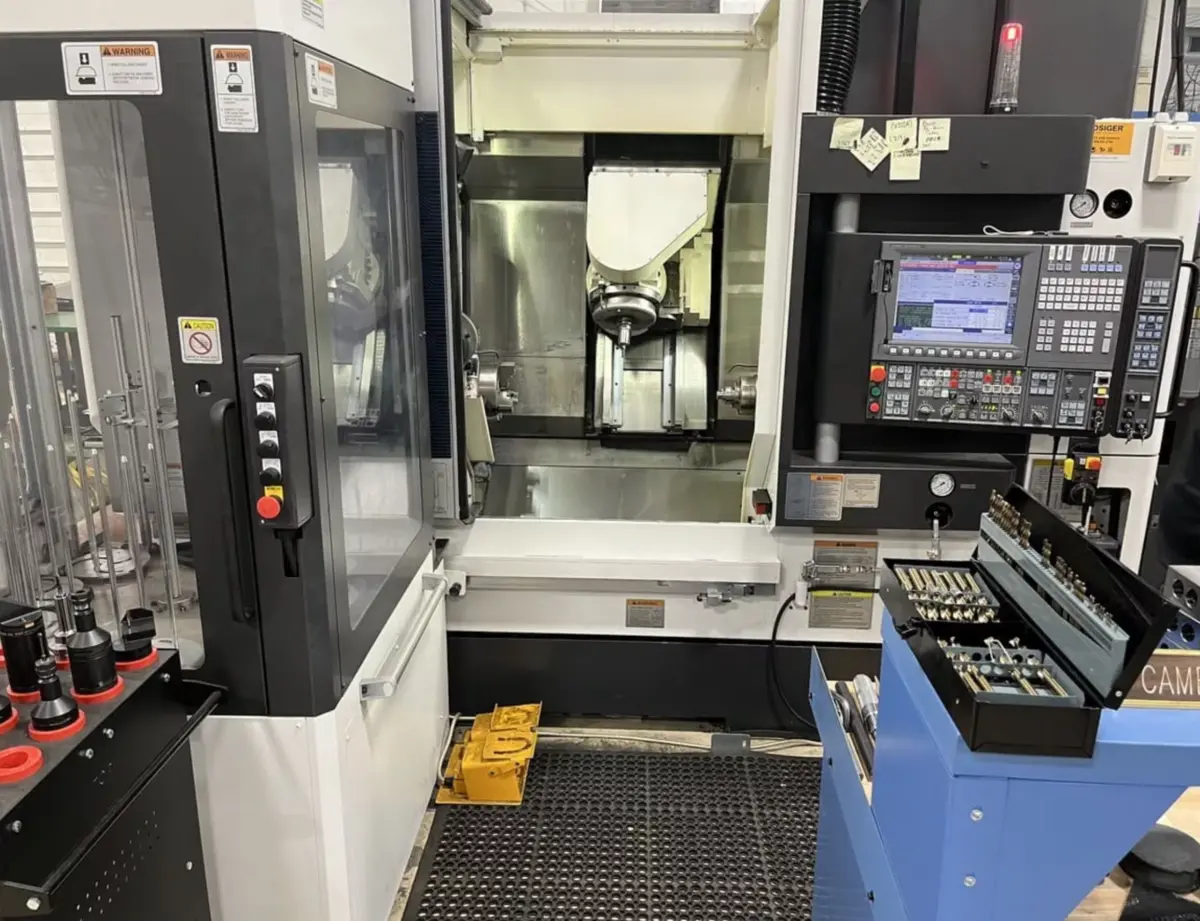

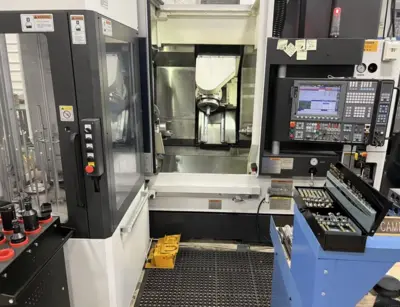

This 2022 Okuma Multus B250II-1SW/750 5-axis mill-turn comes with an Armroid A201 robot and six-station lift-up work stocker, plus a 60-tool ATC, auto tool presetter, and C-axis live tooling with Y-axis. Its 30/20 HP main spindle reaches 5,000 RPM with an 8" chuck and 2.6" bar capacity, and the sub spindle runs to 6,000 RPM with a 6" chuck, over a 23.62" turning diameter and 40.55" between centers.
Main Spindle Nose: A2-6
Sub Spindle Speed: 6,000 RPM
Sub Spindle Chuck: 6"
Sub Spindle Motor: 15/10 HP
X-Axis Travel: 19.69"
Y-Axis Travel: 7.87"
Z-Axis Travel: 31.5"
W-Axis Travel: 31.89"

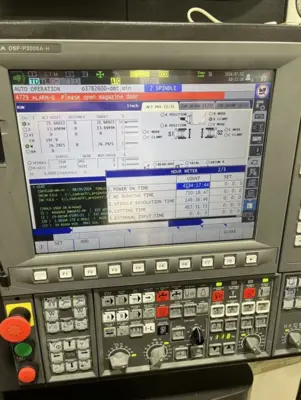

Okuma OSP-P300SA-H Control

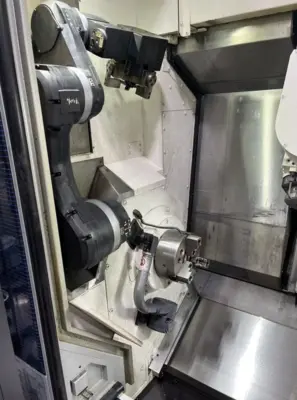

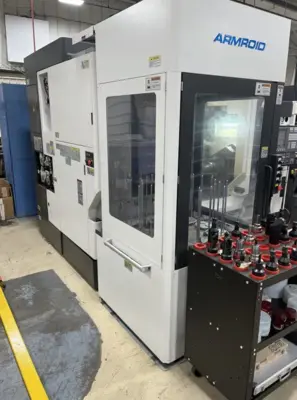

Armroid A201 Robot
Six Station Work Stocker Lift-Up Type
Auto Tool Presetter
60 ATC
C-Axis Live Tooling
Y-Axis

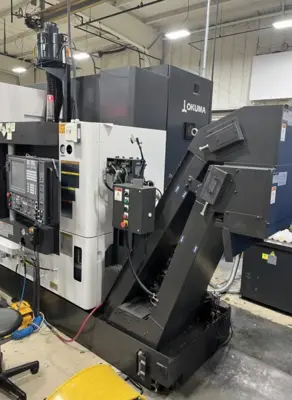

Chip Conveyor
This 2022 Okuma Multus B250II-1SW/750 5-axis mill-turn comes with an Armroid A201 robot and six-station lift-up work stocker, plus a 60-tool ATC, auto tool presetter, and C-axis live tooling with Y-axis. Its 30/20 HP main spindle reaches 5,000 RPM with an 8" chuck and 2.6" bar capacity, and the sub spindle runs to 6,000 RPM with a 6" chuck, over a 23.62" turning diameter and 40.55" between centers.
The Okuma Multus B250II-1SW/750, also searched as Okuma Multus B250 II, Multus B250II-1SW, Multus B250II, Multus B250-II, and B250II, is a 5-axis mill-turn turning center with a sub spindle and robot automation (multitasking lathe).
This 2022 machine has 19.69" of X-axis travel, 7.87" of Y-axis travel, 31.5" of Z-axis travel, and 31.89" of W-axis travel, with an A2-6 main spindle nose, a 15/10 HP sub spindle motor, and a chip conveyor.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Main Spindle Nose: A2-6
Sub Spindle Speed: 6,000 RPM
Sub Spindle Chuck: 6"
Sub Spindle Motor: 15/10 HP
X-Axis Travel: 19.69"
Y-Axis Travel: 7.87"
Z-Axis Travel: 31.5"
W-Axis Travel: 31.89"
Okuma OSP-P300SA-H Control
Armroid A201 Robot
Six Station Work Stocker Lift-Up Type
Auto Tool Presetter
60 ATC
C-Axis Live Tooling
Y-Axis
Chip Conveyor
